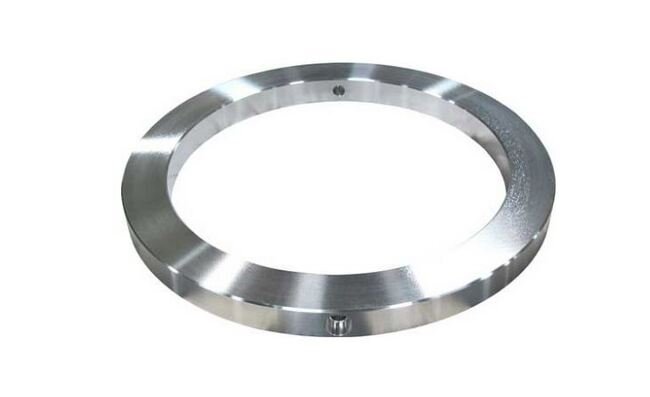

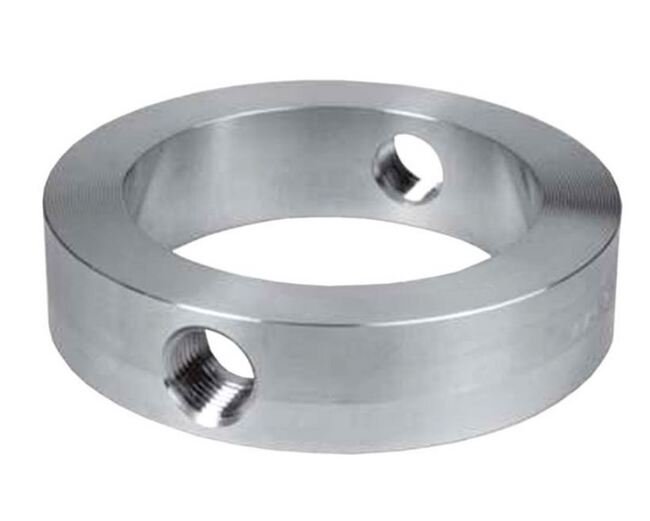

Sure Flow Equipment 6" Bleed & Flushing Ring
Sure Flow Equipment 6" Bleed & Flushing Ring
SKU:LIN-cb707a
High-quality 6" Bleed & Flushing Ring, ASME Class 150 & ISO 9001:2008 compliant, ideal for water, oil, gas applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sure Flow Equipment 6" Bleed & Flushing Ring
$1,299.99
Quantity: 1
Claim Your Seller Account
Sure Flow Equipment 6" Bleed & Flushing Ring
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Equipment 6-inch Bleed and Flushing Ring is designed to withstand high pressures and temperatures, meeting ASME Class 150 and ISO 9001:2008 standards. Constructed from high-quality carbon steel with stainless steel options, this ring is ideal for water, oil, and gas applications. Featuring threaded or socket-weld taps, this ring offers versatility and reliability for various industrial uses.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

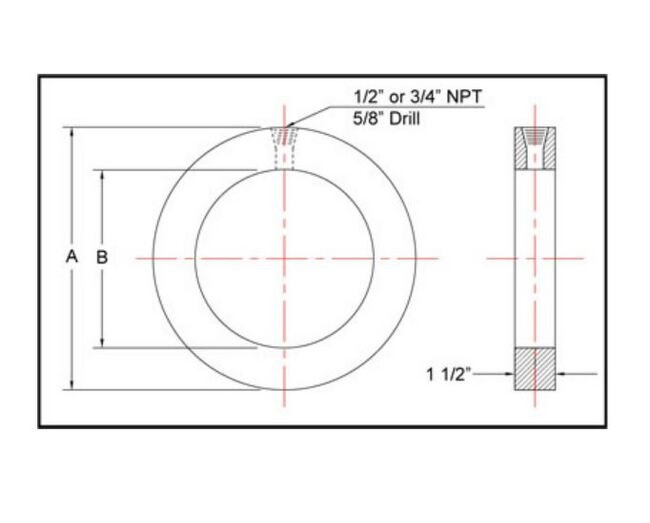

Dimensions Dimension A
10 3/8 in
Dimensions Dimension B
6 5/8 in
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
0600
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
