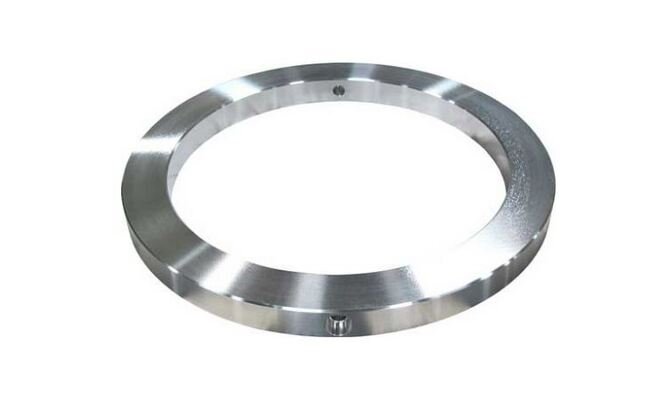

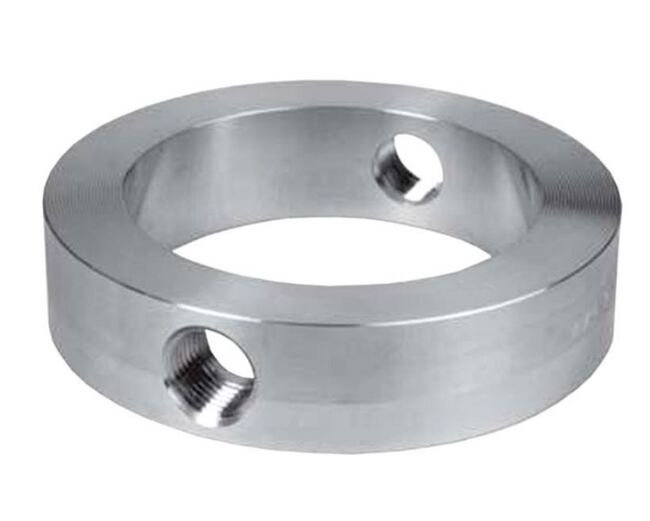

Sure Flow Equipment 6-Inch Bleed and Flushing Ring
Sure Flow Equipment 6-Inch Bleed and Flushing Ring
SKU:LIN-db74fc
Reliable 6-Inch Bleed & Flushing Ring for water, oil, gas applications. ASME Class 150 & ISO 9001:2008 certified. Durable Stainless Steel construction.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Sure Flow Equipment 6-Inch Bleed and Flushing Ring
$99.99
Quantity: 1
Claim Your Seller Account
Sure Flow Equipment 6-Inch Bleed and Flushing Ring
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow Equipment 6-Inch Bleed and Flushing Ring is a robust solution designed to endure extreme pressure-temperature conditions in line with ASME standards. Constructed from high-grade Stainless Steel, this ring offers reliable performance for water, oil, and gas applications. With operating pressures up to 275 psi at 100°F, and certifications including ASME Class 150 and ISO 9001:2008, this ring ensures top-tier quality and adherence to industry standards. Sure Flow prioritizes precision and durability in the design and manufacturing of these rings, making them a trusted choice for industrial and institutional applications.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

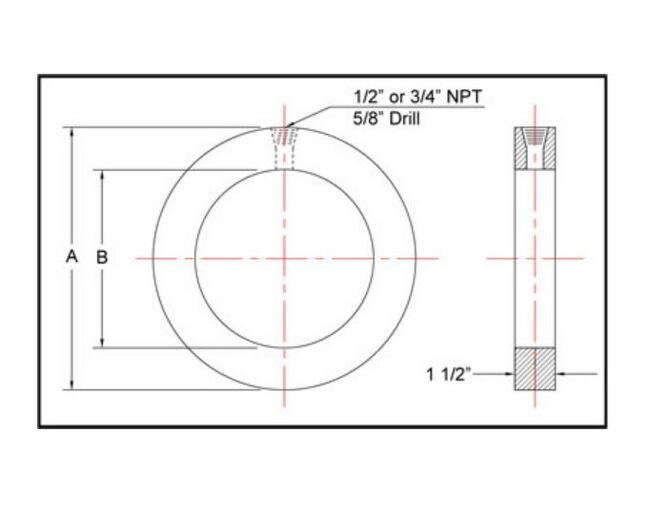

Dimensions Dimension A
8 5/8 in
Dimensions Dimension B
6 5/8 in
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0600
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
