Sure Flow FE150 10in Retainerless Carbon Steel Wafer Double Door Check Valve
Sure Flow FE150 10in Retainerless Carbon Steel Wafer Double Door Check Valve
SKU:DOU-090e43
Sure Flow FE150 Retainerless Carbon Steel Check Valve - Reliable backflow prevention with double door dual disc mechanism. ISO 9001:2008 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow FE150 10in Retainerless Carbon Steel Wafer Double Door Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 10in Retainerless Carbon Steel Wafer Double Door Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 10 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is expertly designed for reliable backflow prevention in industrial applications. Crafted from durable carbon steel, this valve features a double door dual disc mechanism for enhanced sealing. Compliant with International Organization for Standardization (ISO) 9001:2008 standards, the FE150 ensures performance and quality. Its components, including fluorocarbon seat/seal, 316 stainless steel disc, and Inconel® torsion spring, guarantee longevity and efficiency.
Product Specifications

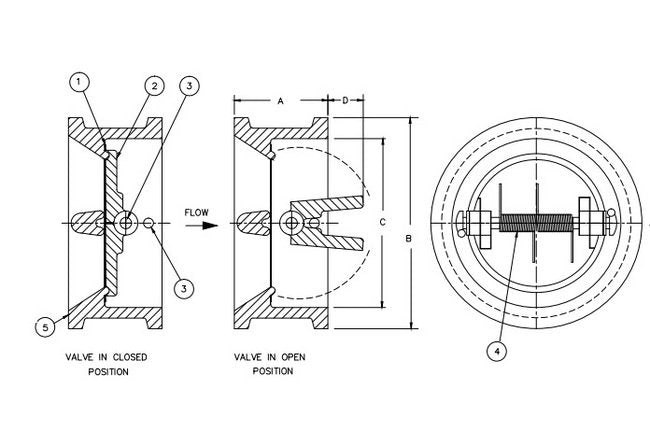

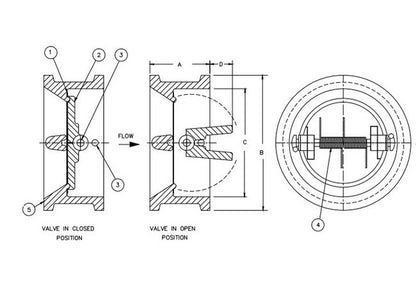

Dimensions Dimension A
5 3/4 in
Dimensions Dimension B
13 3/8 in
Dimensions Dimension C
10 3/4 in
Dimensions Dimension D
2 3/4 in
Dimensions Size
10 in
Dimensions Weight
96 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
