Sure Flow FE150 2 Inch Wafer Check Valve
Sure Flow FE150 2 Inch Wafer Check Valve
SKU:DOU-2b06ce
Reliable 2" carbon steel wafer check valve with dual disc design for precise flow control, compliant with ISO 9001:2008.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow FE150 2 Inch Wafer Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 2 Inch Wafer Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is crafted for precision and durability. This 2-inch carbon steel valve features a dual disc design, ensuring efficient flow control and minimal pressure drop. Built to international standards like ISO 9001:2008, this valve is reliable and meets the stringent requirements of industrial applications.
Product Specifications
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
2 3/8 in
Dimensions Dimension D
1/8 in
Dimensions Size
2 in
Dimensions Weight
5 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

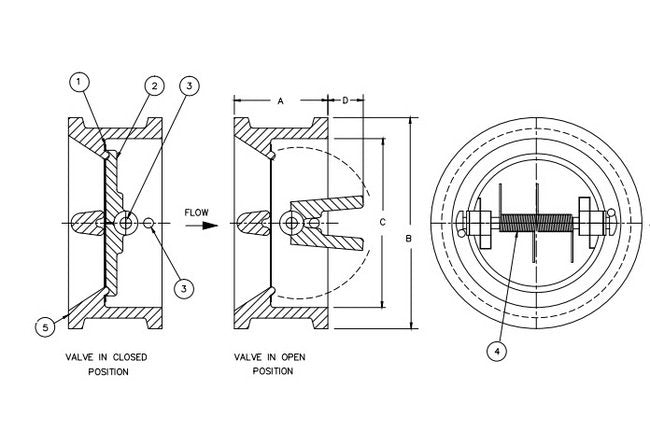

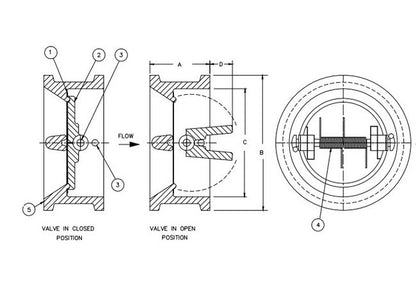

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
