Sure Flow FE150 24in Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150 24in Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-640b5a
High-performance 24in Carbon Steel Wafer Double Door Dual Disc Check Valve by Sure Flow meets ISO 9001:2008 standards.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
Sure Flow FE150 24in Carbon Steel Wafer Double Door Dual Disc Check Valve
$1,399.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 24in Carbon Steel Wafer Double Door Dual Disc Check Valve
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 24 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve is a top-of-the-line industrial solution designed for high-pressure applications. Crafted with precision from durable Carbon Steel, this valve guarantees superior performance and longevity. Its innovative design features a dual disc system ensuring reliable and efficient flow control. Compliant with ISO 9001:2008 standards, this valve is a trusted choice for quality and reliability in critical operations.

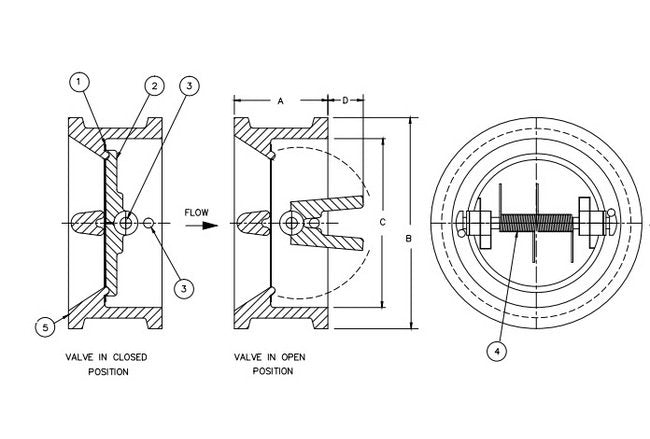

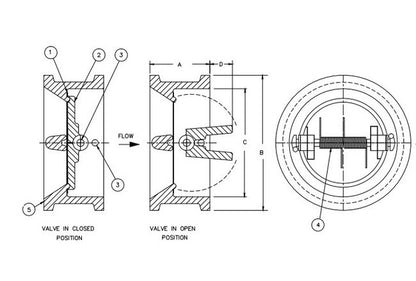

Product Specifications
Dimensions Dimension A
8 3/4 in
Dimensions Dimension B
28 1/4 in
Dimensions Dimension C
23 3/4 in
Dimensions Dimension D
7 1/2 in
Dimensions Size
24 in
Dimensions Weight
580 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
