Sure Flow FE150 3 Inch Carbon Steel Wafer Double Door Check Valve

Name: Sure Flow FE150 3 Inch Carbon Steel Wafer Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-4e8b4d
Price: 289.99 USD
Availability: OutOfStock

SKU:DOU-4e8b4d

Reliable 3" Sure Flow Carbon Steel Check Valve for various applications. ISO 9001:2008 certified.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE150 Series 3 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve offers exceptional performance and reliability for a wide range of applications. Constructed with high-quality materials, including Carbon Steel and 316 Stainless Steel components, this valve ensures durability and corrosion resistance. Certified under International Organization for Standardization (ISO) 9001:2008, it meets stringent quality standards, making it ideal for both consumer and institutional buyers.

Product Specifications

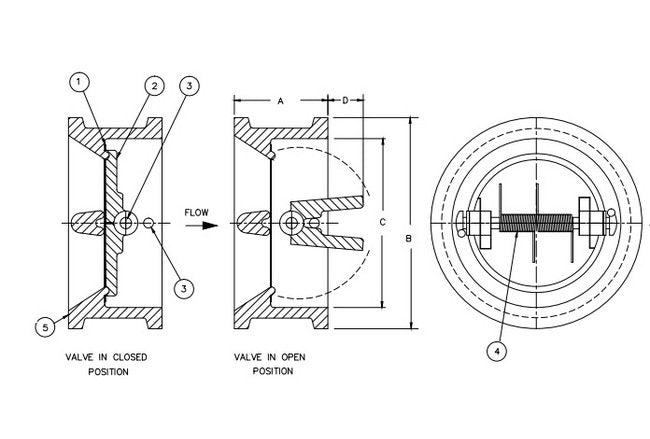

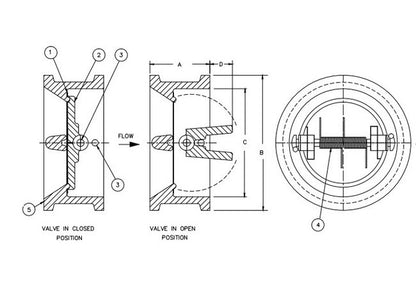

Dimensions Dimension A

2 7/8 in

Dimensions Dimension B

5 3/8 in

Dimensions Dimension C

3 3/4 in

Dimensions Dimension D

9/16 in

Dimensions Size

3 in

Dimensions Weight

10 lb

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE150 3 Inch Carbon Steel Wafer Double Door Check Valve
