Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

DOU-6cf579

Reliable Sure Flow FE150 8in Carbon Steel Wafer Double Door Dual Disc Check Valve for efficient flow control.

$699.99
$699.99
Sale

Initiate Order

Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

$699.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

Sure Flow FE150 8-inch Carbon Steel Wafer Dual Disc Check Valve

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150 Series 8-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is designed for high-performance applications, ensuring reliable and efficient flow control. With its Carbon Steel construction and double-door dual-disc design, this valve offers exceptional durability and prevents backflow effectively. It meets ISO 9001:2008 standards and features high-quality components including Fluorocarbon seat/seal, 316 Stainless Steel disc, shaft, and torsion spring, and a SA216 WCB cast body.

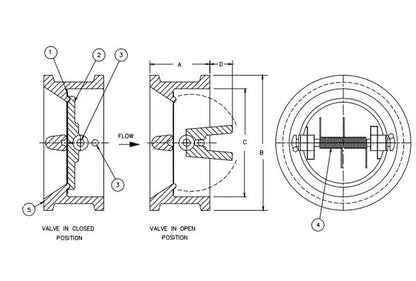

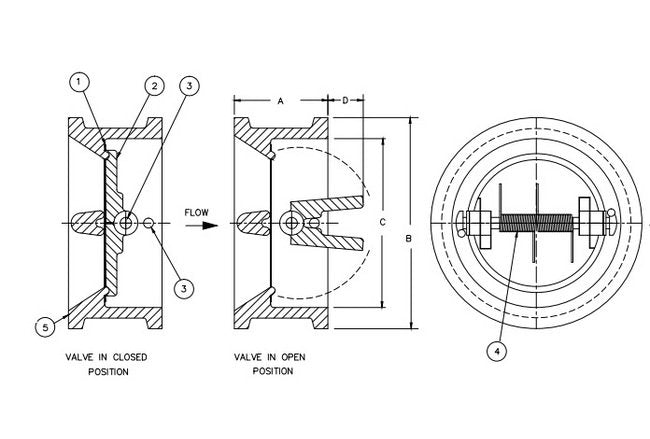

Product Specifications

Dimensions Dimension A
5 in
Dimensions Dimension B
11 in
Dimensions Dimension C
8 5/8 in
Dimensions Dimension D
2 1/16 in
Dimensions Size
8 in
Dimensions Weight
44 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
