Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

DOU-b3475c

Reliable Sure Flow 12" Carbon Steel Dual Disc Check Valve - ISO 9001:2008 Compliant

$899.99
$899.99
Sale

Initiate Order

Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

$899.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 12" Retainerless Carbon Steel Wafer Double Door Check Valve

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150 Series Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a high-quality industrial valve designed for reliable performance in critical applications. Crafted from durable carbon steel, this valve features a wafer design with dual discs for efficient flow control. With components like fluorocarbon seat/seal, 316 stainless steel disc, shaft, and Inconel torsion springs, this valve ensures longevity and precision. It complies with ISO 9001:2008 standards and is equipped with a cast body for robust construction.

Product Specifications

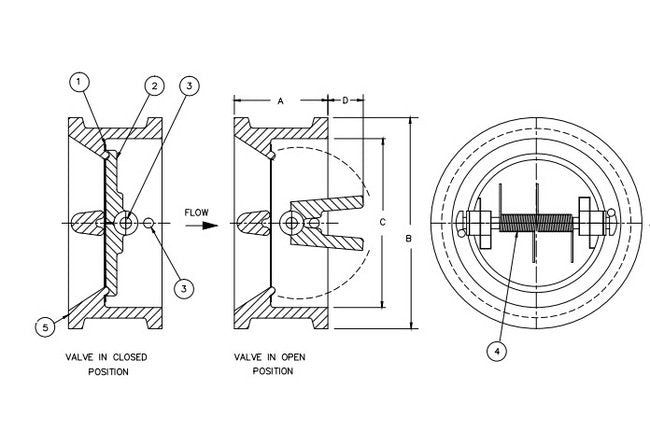

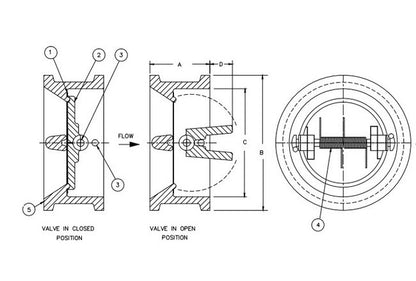

Dimensions Dimension A
7 1/8 in
Dimensions Dimension B
16 1/8 in
Dimensions Dimension C
12 5/8 in
Dimensions Dimension D
2 9/16 in
Dimensions Size
12 in
Dimensions Weight
159 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
