Sure Flow FE150 Series 14in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150 Series 14in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-b6f0a1
Reliable Sure Flow 14in Carbon Steel Check Valve with Wafer Double Door Design & ISO 9001:2008 Compliance
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 14in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$789.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 14in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 14in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is designed for reliable flow control applications. Constructed with high-quality carbon steel, this valve features a wafer double door dual disc design for enhanced performance. With dimensions of 7 1/4" x 17 3/4" x 13 11/16" and weighing 186 lbs, it meets ISO 9001:2008 standards. The valve components include fluorocarbon seat/seal, SA351 CF8M disc, 316 stainless steel shaft, Inconel® torsion spring, and cast body. Notably, it is equipped with a lifting eyebolt for easy installation and maintenance.
Product Specifications
Dimensions Dimension A
7 1/4 in
Dimensions Dimension B
17 3/4 in
Dimensions Dimension C
13 11/16 in
Dimensions Dimension D
3 3/4 in
Dimensions Size
14 in
Dimensions Weight
186 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting

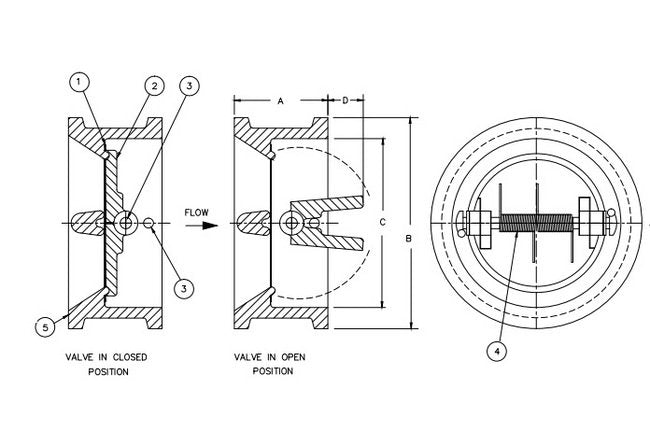

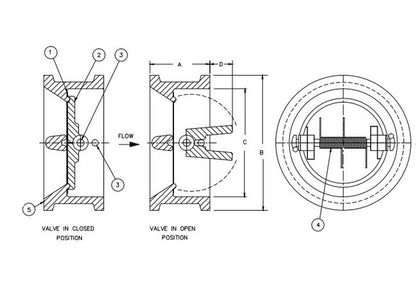

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
