Sure Flow FE150 Series 16-inch Retainerless Carbon Steel Double Door Dual Disc Check Valve
Sure Flow FE150 Series 16-inch Retainerless Carbon Steel Double Door Dual Disc Check Valve
SKU:DOU-13f797
Reliable 16-inch Carbon Steel Wafer Check Valve for precise fluid control in commercial and industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 16-inch Retainerless Carbon Steel Double Door Dual Disc Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 16-inch Retainerless Carbon Steel Double Door Dual Disc Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 16-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for fluid control applications. Crafted from high-quality carbon steel, this valve ensures durability and efficient performance. With dimensions meeting industry standards, this valve features a double door design with dual discs for enhanced sealing. The valve is ISO 9001:2008 certified and includes premium components like fluorocarbon seat/seal, 316 stainless steel disc and shaft, and Inconel torsion springs. The cast body with a tapped valve for eyebolt lifting adds to its functionality.
Product Specifications

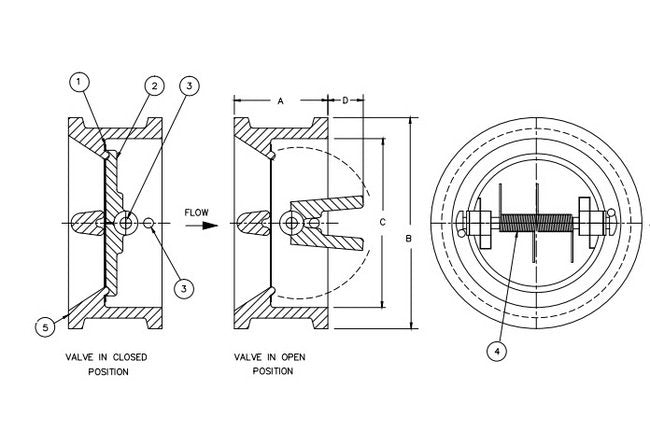

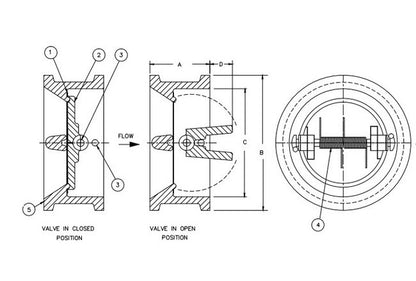

Dimensions Dimension A
7 1/2 in
Dimensions Dimension B
20 1/4 in
Dimensions Dimension C
16 11/16 in
Dimensions Dimension D
4 1/8 in
Dimensions Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
