Sure Flow FE150 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-3eafce
Top-performing 18in Carbon Steel Wafer Double Door Dual Disc Check Valve, ISO 9001:2008 certified
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 18-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve offers superior durability and reliability for both consumer and institutional users. Crafted with high-grade carbon steel, this valve ensures optimal performance and longevity. Featuring a double door dual disc design, it provides efficient flow control while preventing backflow. The valve complies with International Organization for Standardization (ISO) 9001:2008 standards, guaranteeing top-notch quality and safety. With a robust construction and precision-engineered components like fluorocarbon seat/seals and 316 stainless steel parts, this valve is a dependable choice for various applications.
Product Specifications
Dimensions Dimension A
8 in
Dimensions Dimension B
21 5/8 in
Dimensions Dimension C
18 in
Dimensions Dimension D
4 3/8 in
Dimensions Size
18 in
Dimensions Weight
302 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting

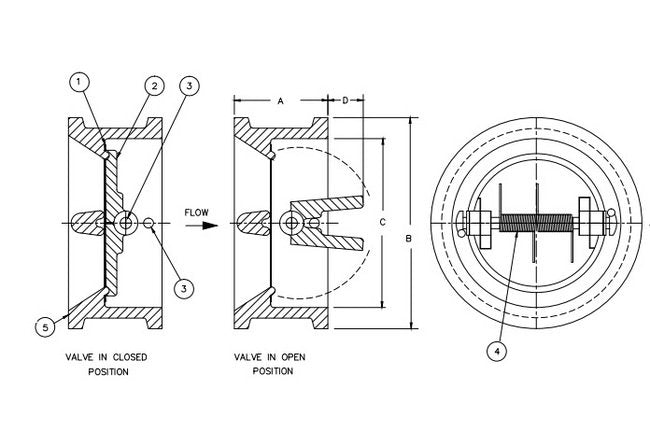

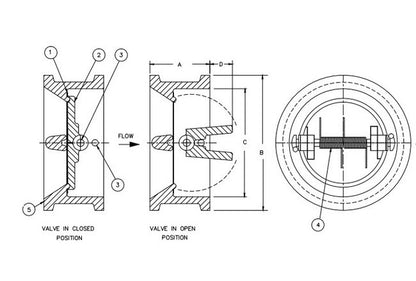

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
