Sure Flow FE150 Series 20" Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150 Series 20" Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-8d497a
Ensure reliable fluid control with Sure Flow FE150 20" Carbon Steel Wafer Double Door Check Valve. Meets ISO 9001:2008 standards.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 20" Carbon Steel Wafer Double Door Dual Disc Check Valve
$1,499.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 20" Carbon Steel Wafer Double Door Dual Disc Check Valve
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control with the Sure Flow FE150 Series 20" Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve. Built with durable materials like Carbon Steel, this valve ensures reliable performance. Featuring a Double Door design with Dual Disc for optimized flow control, the valve is engineered to meet the highest industry standards including ISO 9001:2008. Its components like Fluorocarbon/316 Stainless Steel seat/seal, SA351 CF8M disc, and 316 Stainless Steel shaft guarantee long-lasting efficiency. With a weight of 336 lb and precise dimensions, this valve is a must-have for industries prioritizing safety and performance.
Product Specifications

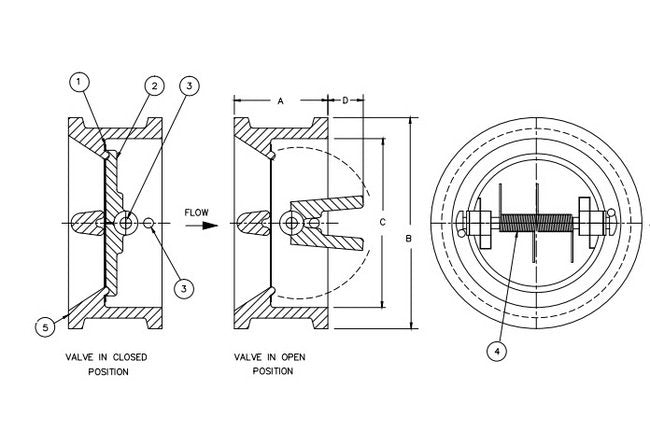

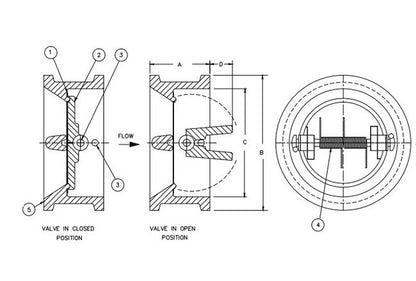

Dimensions Dimension A
8 5/8 in
Dimensions Dimension B
23 7/8 in
Dimensions Dimension C
20 1/4 in
Dimensions Dimension D
5 15/16 in
Dimensions Size
20 in
Dimensions Weight
336 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
