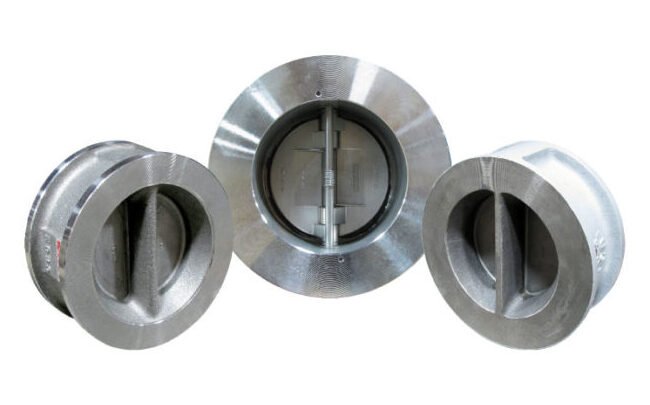

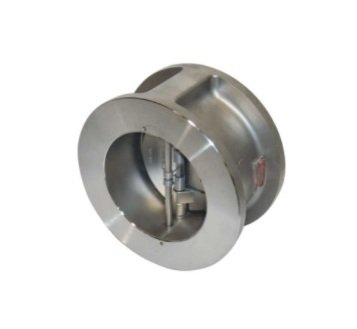

Sure Flow FE150 Series 26'' Carbon Steel Wafer Double Door Check Valve

Name: Sure Flow FE150 Series 26'' Carbon Steel Wafer Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-a79a1b
Price: 599.99 USD
Availability: OutOfStock

SKU:DOU-a79a1b

Reliable Sure Flow FE150 Series 26'' Carbon Steel Wafer Double Door Check Valve for precise industrial flow control.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE150 Series 26'' Carbon Steel Wafer Double Door Check Valve is designed for efficient flow control and reliable performance. Constructed with high-quality materials, this valve features a retainerless design for easy maintenance. With dimensions meeting industry standards, this valve ensures precise operation. The valve components are crafted for durability and resilience, making it ideal for industrial applications requiring secure shut-off mechanisms.

Product Specifications

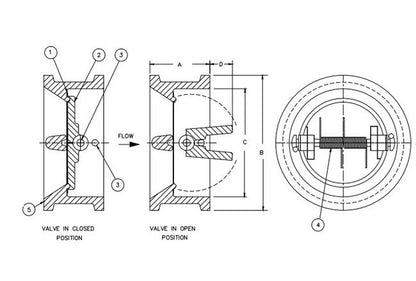

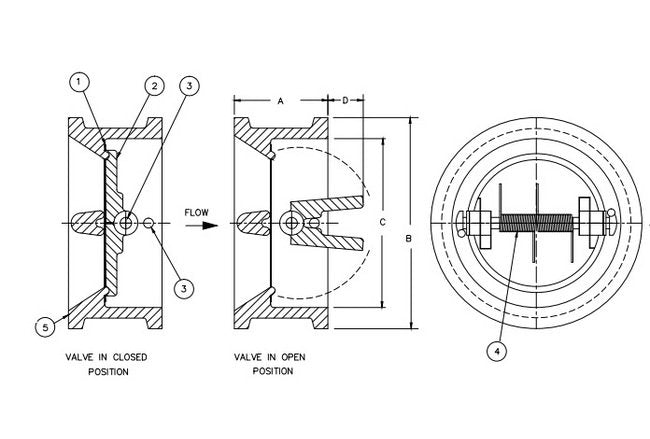

Dimensions Dimension A

11 1/4 in

Dimensions Dimension B

30 1/2 in

Dimensions Dimension C

24 3/4 in

Dimensions Dimension D

8 in

Dimensions Size

26 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Valve is TappedFor Eyebolt for Lifting

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE150 Series 26'' Carbon Steel Wafer Double Door Check Valve
