Sure Flow FE150 Series 28" Carbon Steel Wafer Double Door Check Valve
Sure Flow FE150 Series 28" Carbon Steel Wafer Double Door Check Valve
SKU:DOU-798efe
Reliable 28" Carbon Steel Double Door Check Valve for industrial use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 28" Carbon Steel Wafer Double Door Check Valve
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 28" Carbon Steel Wafer Double Door Check Valve
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 28-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is engineered for superior performance and reliability. Featuring a robust construction of carbon steel, this valve ensures long-lasting durability. The double door dual disc design enhances efficiency by allowing smooth flow and preventing backflow. With industry-leading standards like ISO 9001:2008 certification, this valve prioritizes quality and precision. Each component, from the seat/seal to the cast body, is meticulously crafted to meet the demands of industrial applications.
Product Specifications

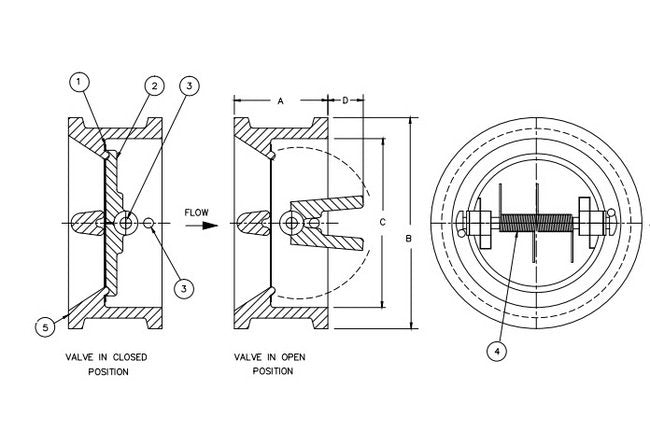

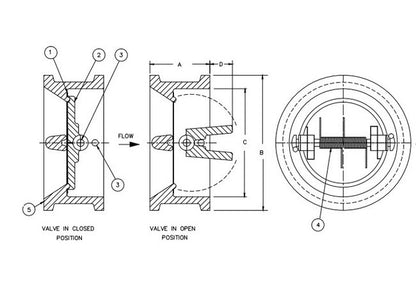

Dimensions Dimension A
12 5/8 in
Dimensions Dimension B
32 3/4 in
Dimensions Dimension C
27 5/8 in
Dimensions Size
28 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
