Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

DOU-926db4

Reliable and durable 36-inch carbon steel double door check valve meeting ISO 9001:2008 standards.

$899.99
$899.99
Sale

Initiate Order

Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$899.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150 Series 36 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for fluid control systems. Made from high-quality carbon steel, this valve ensures durability and performance. With a size of 36 inches, it is suitable for industrial applications requiring efficient flow control. The valve meets ISO 9001:2008 standards, providing assurance of quality and reliability. Featuring retainerless design and retainerless double door dual discs, this valve minimizes maintenance needs and ensures smooth operation.

Product Specifications

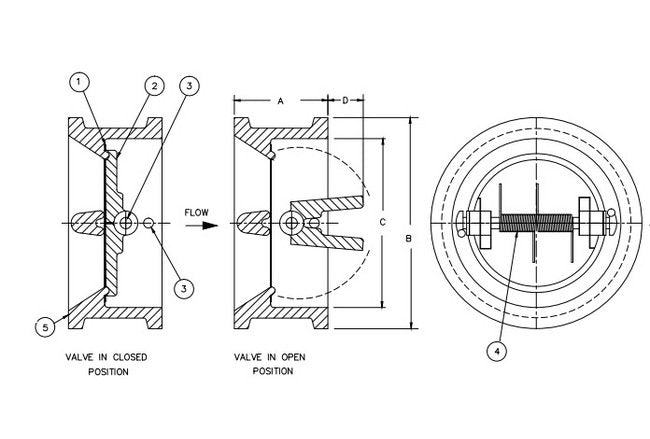

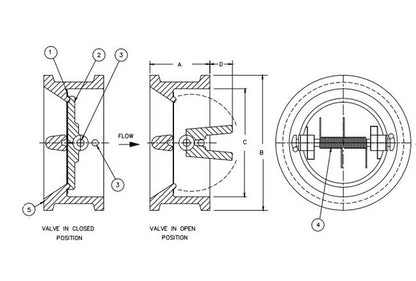

Dimensions Dimension A
14 1/2 in
Dimensions Dimension B
41 1/4 in
Dimensions Dimension C
34 in
Dimensions Dimension D
9 11/16 in
Dimensions Size
36 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
