The Sure Flow FE150 Series 40-inch Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for fluid control in industrial applications. Made from durable carbon steel, this valve features a retainerless design for easy maintenance. With a double-door dual disc configuration, it ensures efficient flow control and prevents backflow, enhancing system performance. Certified to ISO 9001:2008 standards, each component including the fluorocarbon seat/seal and stainless steel discs meets quality benchmarks for optimal operation.

Product Specifications

Dimensions Dimension A
17 in
Dimensions Dimension B
45 3/4 in
Dimensions Dimension C
38 13/16 in
Dimensions Size
40 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting

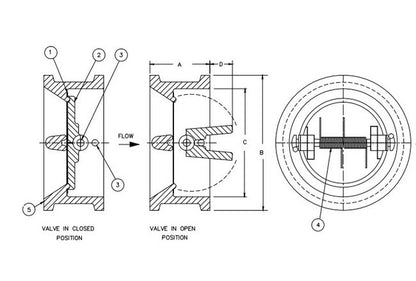

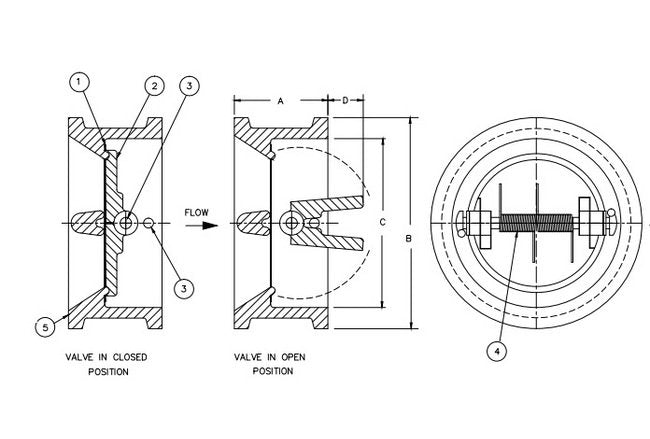

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
