Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

DOU-e5db52

Reliable Sure Flow 42-Inch Carbon Steel Wafer Valve for Industrial Use

$2,399.99
$2,399.99
Sale

Initiate Order

Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

$2,399.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

Sure Flow FE150 Series 42-Inch Retainerless Carbon Steel Wafer Double Door Check Valve

$2,399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150 Series 42-inch Retainerless Carbon Steel Wafer Double Door Check Valve is designed with durability and precision in mind. Constructed from carbon steel, this valve offers reliable performance in industrial applications. With a double door dual disc design, it ensures tight shut-off and prevents backflow. The valve meets ISO 9001:2008 standards, guaranteeing quality and compliance for critical operations. Featuring a fluorocarbon seat/seal, 316 stainless steel components, and Inconel torsion springs, this valve is built to withstand demanding environments.

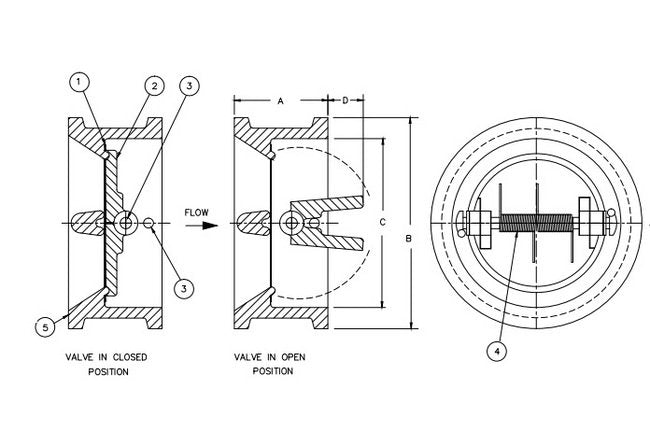

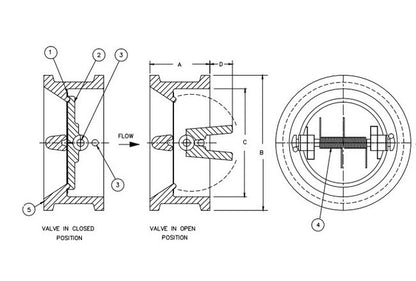

Product Specifications

Dimensions Dimension A
17 in
Dimensions Dimension B
48 in
Dimensions Dimension C
41 13/16 in
Dimensions Dimension D
11 1/2 in
Dimensions Size
42 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
