Sure Flow FE150 Series 4in Carbon Steel Wafer Double Door Check Valve
Sure Flow FE150 Series 4in Carbon Steel Wafer Double Door Check Valve
SKU:DOU-b27a5f
Reliable Sure Flow 4in Carbon Steel Wafer Double Door Check Valve for efficient flow control and tight shut-off.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow FE150 Series 4in Carbon Steel Wafer Double Door Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series 4in Carbon Steel Wafer Double Door Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve is engineered for durability and reliability. With a retainerless design and double disc configuration, it ensures optimal flow control and tight shut-off. Compliant with ISO 9001:2008 standards, this valve features a fluorocarbon seat/seal, SA351 CF8M discs, and a robust cast body, making it suitable for various industrial applications.
Product Specifications

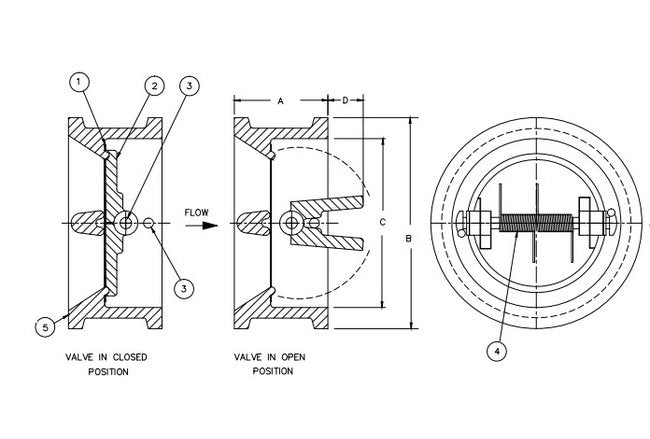

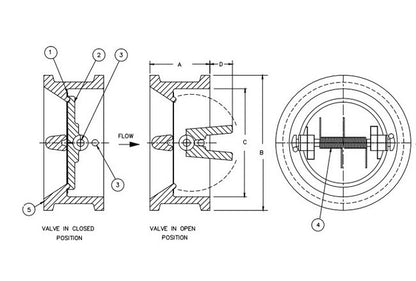

Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
6 7/8 in
Dimensions Dimension C
4 1/2 in
Dimensions Dimension D
7/8 in
Dimensions Size
4 in
Dimensions Weight
14 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
