Sure Flow FE150 Series 5" Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

Name: Sure Flow FE150 Series 5" Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-d3ccae
Price: 399.99 USD
Availability: OutOfStock

SKU:DOU-d3ccae

High-quality Sure Flow 5" Carbon Steel Wafer Double Door Dual Disc Check Valve for precision and reliability.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE150 Series 5" Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is engineered for precision and reliability. Crafted with Carbon Steel, this valve meets ISO 9001:2008 standards. Its innovative design includes a fluorocarbon seat/seal, SA351 CF8M disc, and 316 Stainless Steel shaft for exceptional durability. Ideal for industrial applications demanding high performance and compliance.

Product Specifications

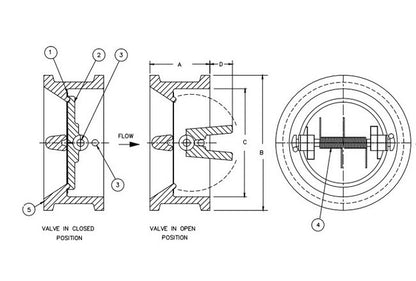

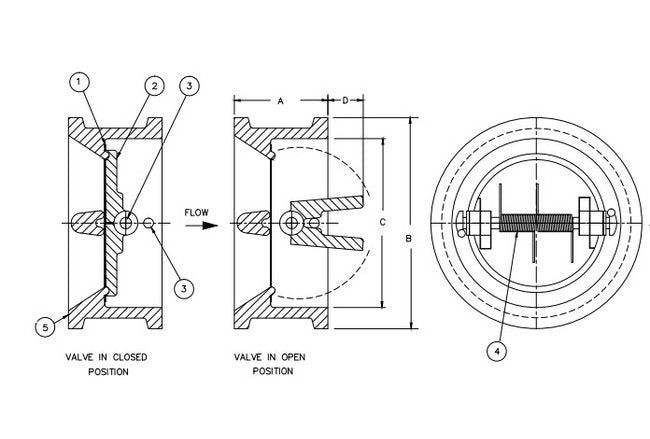

Dimensions Dimension A

3 1/4 in

Dimensions Dimension B

7 11/16 in

Dimensions Dimension C

5 11/16 in

Dimensions Size

5 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE150 Series 5" Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
