The Sure Flow FE150 Series 54-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a robust and reliable solution for fluid flow control. Constructed with high-quality materials like Carbon Steel, it ensures durability and longevity. This valve meets stringent industry standards including ISO 9001:2008, providing assurance of quality and performance. Engineered with a double-door design and dual disc mechanism, it enhances efficiency and minimizes pressure drop, making it ideal for industrial applications.
Product Specifications
Dimensions Dimension A
21 1/4 in
Dimensions Dimension B
60 7/8 in
Dimensions Dimension C
50 1/2 in
Dimensions Size
54 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting

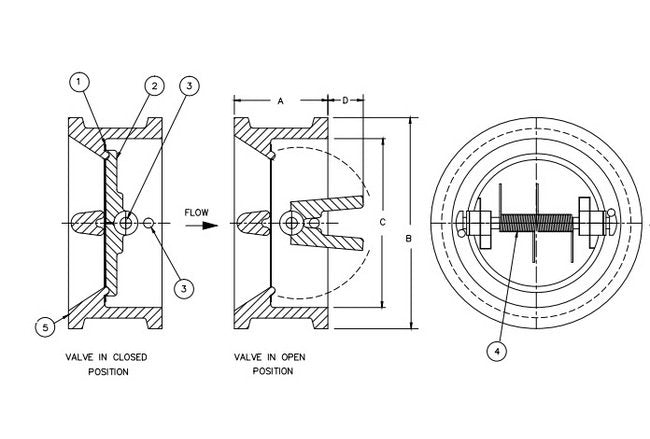

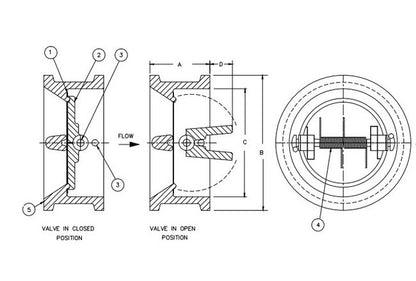

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
