Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve

Name: Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-63bf93
Price: 289.99 USD
Availability: OutOfStock

SKU:DOU-63bf93

Reliable Sure Flow FE150 Series Carbon Steel Double Door Check Valve for precise flow control and durability.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE150 Series 2 1/2 inch Carbon Steel Wafer Double Door Dual Disc Check Valve is a top-of-the-line solution for reliable flow control. Constructed with premium materials and precision engineering, this valve ensures optimal performance and durability. Featuring a retainerless design and meeting ISO 9001:2008 standards, it offers exceptional sealing capabilities and efficiency. With components like FKM/316 Stainless Steel seat/seal, SA351 CF8M disc, and 316 Stainless Steel shaft, this valve guarantees long-lasting, worry-free operation.

Product Specifications

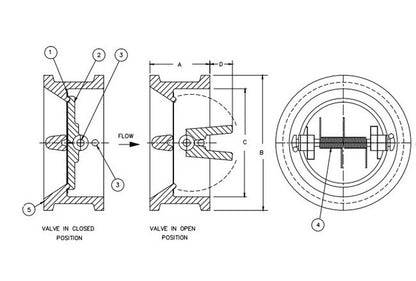

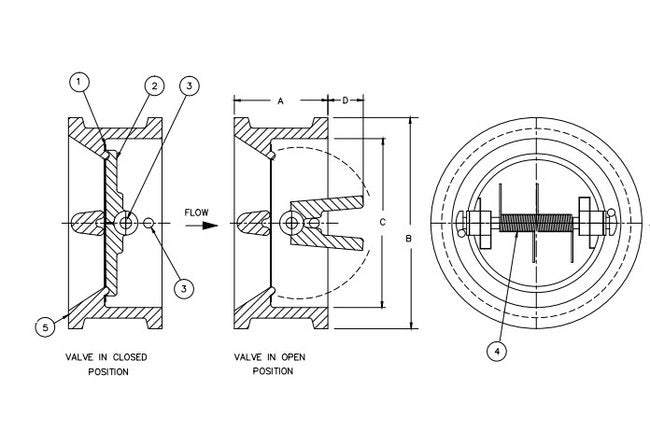

Dimensions Dimension A

2 5/8 in

Dimensions Dimension B

4 7/8 in

Dimensions Dimension C

2 5/16 in

Dimensions Dimension D

3/8 in

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
