Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
SKU:DOU-29c528
High-quality 32in Carbon Steel Wafer Double Door Check Valve, ISO 9001:2008 compliant
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150 Series Carbon Steel Wafer Double Door Check Valve is a reliable and durable solution for fluid control applications. Constructed with high-quality materials and precision engineering, this valve ensures optimal performance and longevity. With a size of 32 inches and compliance with International Organization for Standardization (ISO) 9001:2008 standards, this valve is suitable for a wide range of industrial uses.
Product Specifications

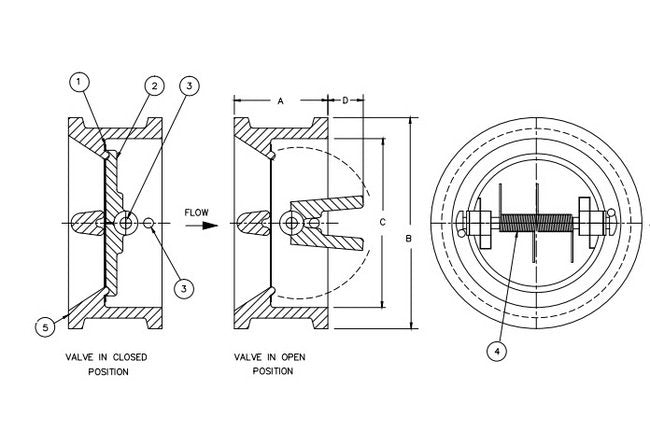

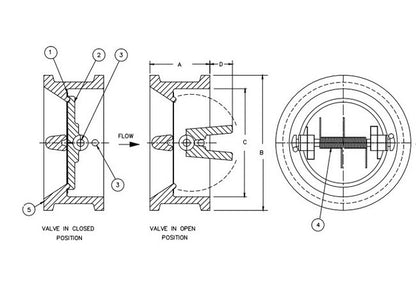

Dimensions Dimension A
14 in
Dimensions Dimension B
37 in
Dimensions Dimension C
30 11/16 in
Dimensions Size
32 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
