Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

DOU-fd627a

Reliable Sure Flow 16 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve for industrial use.

$799.99
$799.99
Sale

Initiate Order

Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

$799.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE1500 Series 16 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is designed for precision and reliability in fluid control systems. Featuring a retainerless design, this valve minimizes potential leak points, ensuring optimal performance. Constructed with carbon steel, it offers exceptional durability and corrosion resistance. The double door dual disc configuration enhances flow efficiency and reduces pressure drop. Compliant with International Organization for Standardization (ISO) 9001:2008 standards, this valve is a trustworthy choice for industrial applications.

Product Specifications

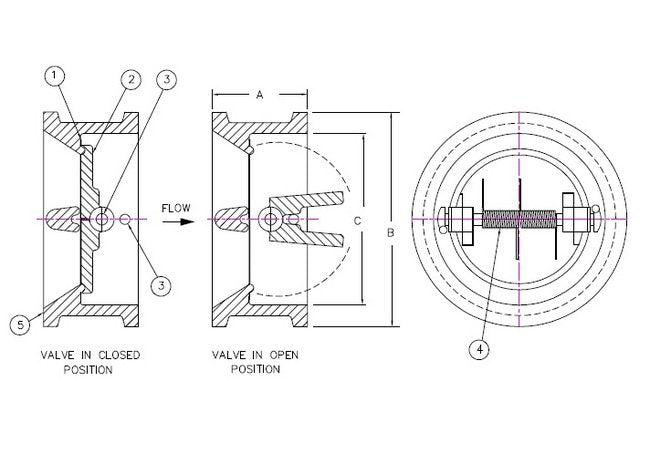

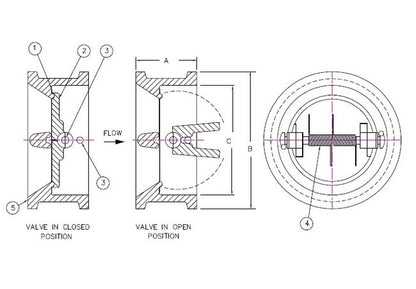

Dimensions Dimension A
15 1/8 in
Dimensions Dimension B
25 1/4 in
Dimensions Dimension C
16 11/16 in
Dimensions Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
