Sure Flow FE1500 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE1500 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-af58b4
Reliable Sure Flow 18in Double Door Check Valve for efficient flow control. Compliant with ISO 9001:2008.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow FE1500 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE1500 Series 18in Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE1500 Series 18-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a reliable solution for both consumer and institutional buyers. Built with high-quality materials and designed for efficiency, this valve ensures secure flow control. Compliant with ISO 9001:2008 standards, it features a fluorocarbon seal, 316 stainless steel components, and a durable cast body. With precise dimensions and a sturdy build, this valve guarantees long-lasting performance in various applications.
Product Specifications

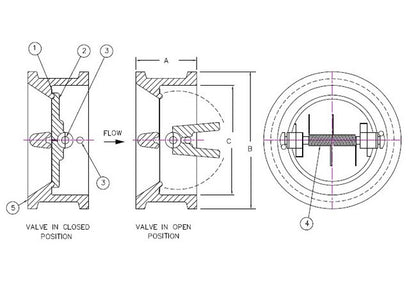

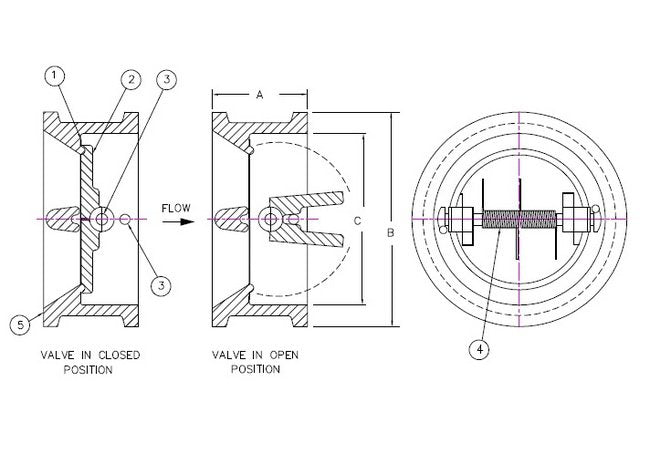

Dimensions Dimension A
18 7/16 in
Dimensions Dimension B
27 3/4 in
Dimensions Dimension C
18 in
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
