Sure Flow FE1500 Series 6" Carbon Steel Wafer Double Door Check Valve

Name: Sure Flow FE1500 Series 6" Carbon Steel Wafer Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-d37650
Price: 239.99 USD
Availability: OutOfStock

SKU:DOU-d37650

Reliable Sure Flow 6" Carbon Steel Wafer Double Door Check Valve, ISO 9001:2008 Certified

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow FE1500 Series 6" Carbon Steel Wafer Double Door Dual Disc Check Valve is designed for optimal performance in industrial applications. Constructed with high-quality materials, including Carbon Steel and 316 Stainless Steel, this valve ensures reliability and longevity. The innovative dual disc design enhances efficiency and prevents backflow, promoting a smooth flow of fluids. Certified with ISO 9001:2008 standards, it meets the rigorous quality requirements for institutional and government procurement.

Product Specifications

Dimensions Dimension A

6 1/4 in

Dimensions Dimension B

11 1/8 in

Dimensions Dimension C

6 5/8 in

Dimensions Size

6 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

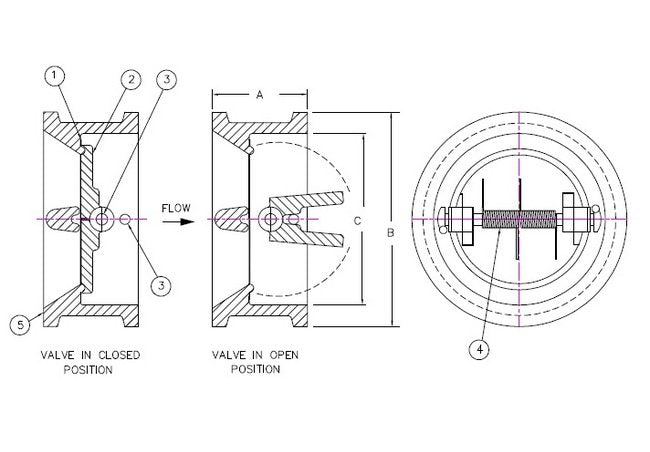

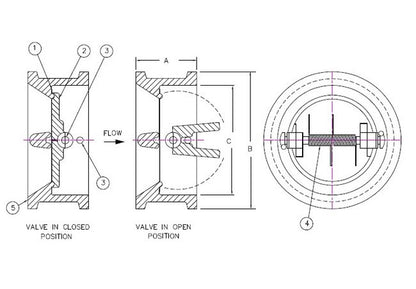

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1

Specifications Check Valve Type

Wafer Double Door Dual Disc

Specifications Material

Carbon Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE1500 Series 6" Carbon Steel Wafer Double Door Check Valve
