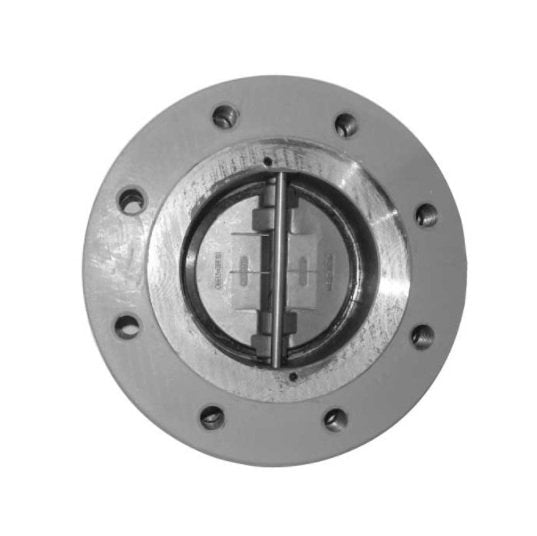

• Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve - Image 1
  • Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

DOU-a7e67b

Reliable Sure Flow 10in Retainerless Double Door Carbon Steel Lug Check Valve for top performance and durability.

$299.99
$299.99
Sale

Initiate Order

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve is designed for high-performance applications where reliability is crucial. Constructed from durable carbon steel, this valve features a double door design for efficient flow control. It comes with industry-standard certifications, including ISO 9001:2008, ensuring top-notch quality and performance. With components like Fluorocarbon seat/seal, SA351 CF8M disc, and Inconel® torsion springs, this valve guarantees long-term durability and optimal functionality.

Product Specifications

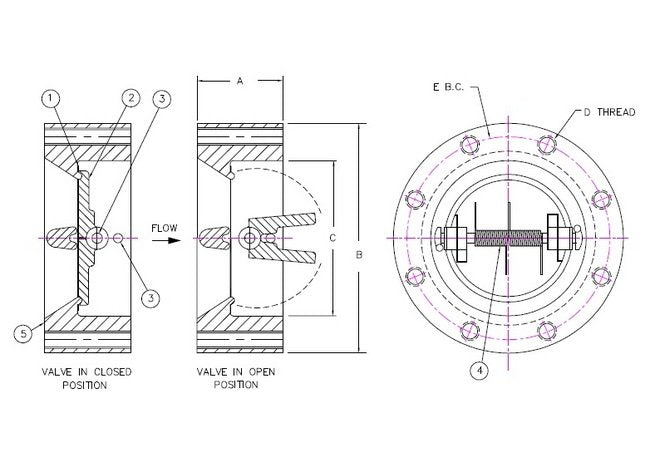

Dimensions Bolt Circle Bc E
14 1/4 in
Dimensions Dimension A
5 3/4 in
Dimensions Dimension B
16 in
Dimensions Dimension C
10 3/4 in
Dimensions Size
10 in
Dimensions Thread Size D
7/8-9 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
