Sure Flow FE150L 2 Inch Double Door Lug Check Valve
Sure Flow FE150L 2 Inch Double Door Lug Check Valve
SKU:DOU-036aa8
Reliable Sure Flow 2" Retainerless Double Door Lug Check Valve for industrial applications, ISO 9001:2008 compliant.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow FE150L 2 Inch Double Door Lug Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150L 2 Inch Double Door Lug Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

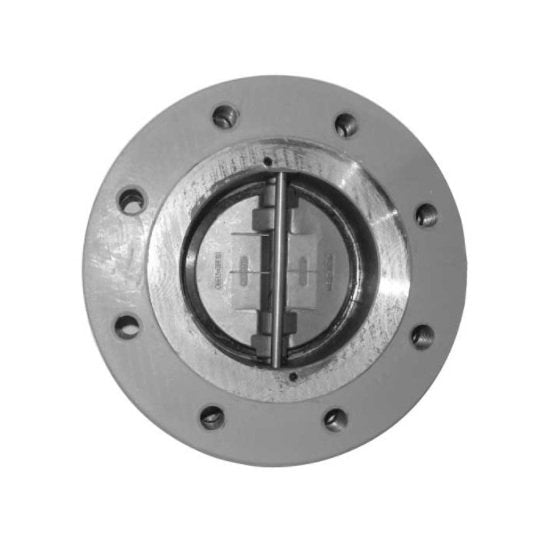

The Sure Flow FE150L 2 Inch Retainerless Double Door Carbon Steel Lug Check Valve is designed for optimal performance in industrial applications. Constructed with durable carbon steel, this valve features dual disc functionality for efficient flow control and reliability. Meeting ISO 9001:2008 standards, it includes high-quality components like Fluorocarbon seat/seal, 316 Stainless Steel disc, and Inconel torsion spring. With ASME Standard B16.5 compliant flanges, this valve ensures precision and safety.
Product Specifications

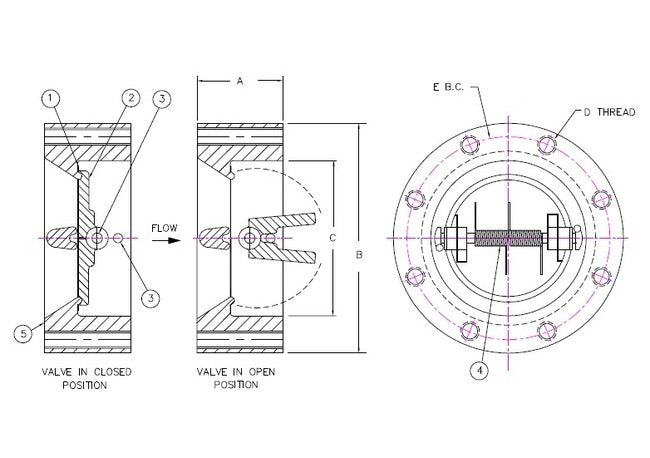

Dimensions Bolt Circle Bc E
4 3/4 in
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
6 in
Dimensions Dimension C
2 3/8 in
Dimensions Size
2 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
