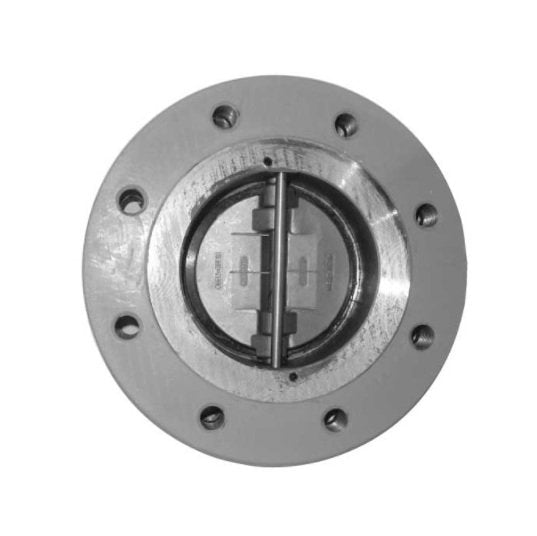

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

DOU-013981

Ensure flow control with our 3" Sure Flow carbon steel lug check valve. ISO 9001:2008 compliant, ASME B16.5 approved.

$299.99
$299.99
Sale

Initiate Order

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE150L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve is engineered for reliability and efficiency. Crafted from high-quality carbon steel, it features a double-door design for enhanced flow control. This valve meets ISO 9001:2008 standards, ensuring premium quality and performance. With fluorocarbon seat/seal, stainless steel disc, and Inconel torsion spring, this valve offers durability and longevity. Compliant with ASME Standard B16.5, it guarantees precision and compatibility with industry requirements.

Product Specifications

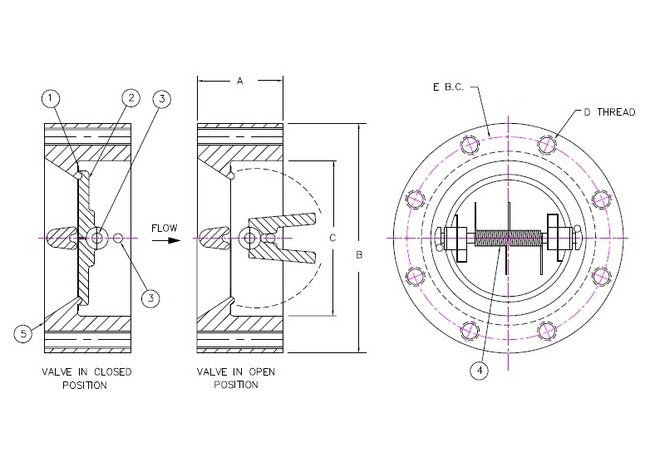

Dimensions Bolt Circle Bc E
6 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
7 1/2 in
Dimensions Dimension C
3 3/4 in
Dimensions Size
3 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
