Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

DOU-7ee1c7

Ensure precise flow control with Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve. Compliant with ISO 9001:2008 standards and ASME B16.5 requirements.

$349.99
$349.99
Sale

Initiate Order

Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

$349.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

Sure Flow FE150L 6 Inch Carbon Steel Lug Check Valve

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

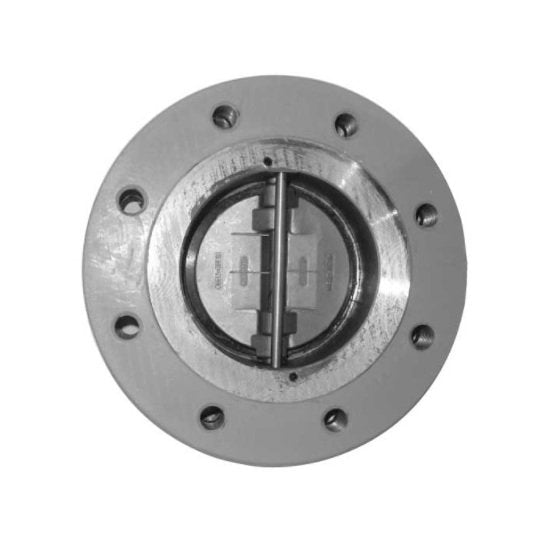

The Sure Flow FE150L 6 Inch Retainerless Double Door Carbon Steel Lug Check Valve ensures reliable flow control with its durable construction and precise engineering. This valve features a robust design with a fluorocarbon seat/seal, stainless steel disc, and shaft, meeting ISO 9001:2008 standards. Ideal for industrial applications, it complies with ASME Standard B16.5 for seamless integration and optimal performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

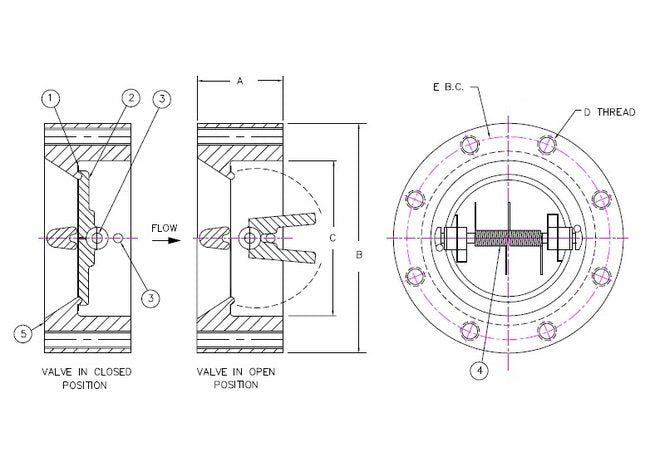

Product Specifications

Dimensions Bolt Circle Bc E
9 1/2 in
Dimensions Dimension A
3 7/8 in
Dimensions Dimension B
11 in
Dimensions Dimension C
6 5/8 in
Dimensions Size
6 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
