Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

DOU-a06088

Reliable Sure Flow 8in Double Door Carbon Steel Lug Check Valve for industrial applications. Meets ISO 9001:2008 standards.

$599.99
$599.99
Sale

Initiate Order

Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

$599.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE150L 8in Retainerless Double Door Carbon Steel Lug Check Valve

$599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

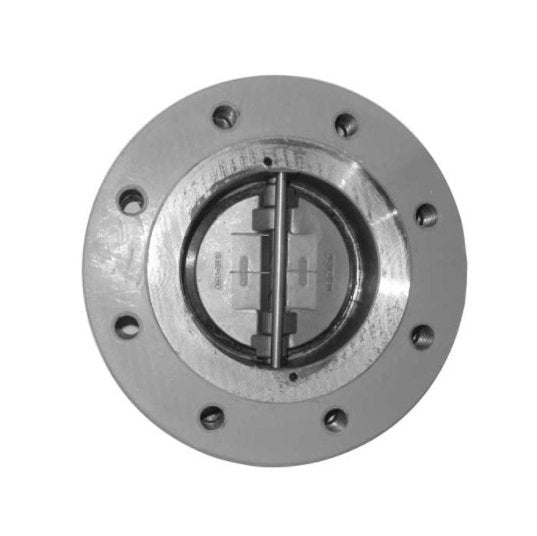

The Sure Flow FE150L 8-inch Retainerless Double Door Carbon Steel Lug Check Valve is a premium solution for industrial fluid control. Crafted from durable Carbon Steel, it features a unique Double Door design for enhanced efficiency and reliability. This valve meets International Organization for Standardization (ISO) 9001:2008 (Intertek) standards and includes premium parts like Fluorocarbon (FKM)/316 Stainless Steel seat/seal and SA351 CF8M disc, ensuring exceptional performance.

Product Specifications

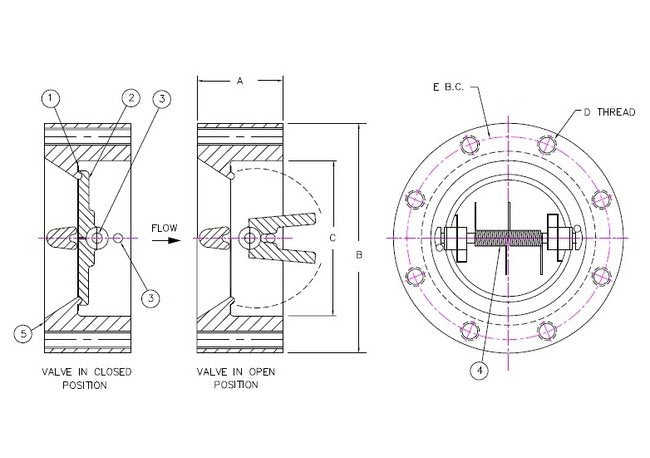

Dimensions Bolt Circle Bc E
11 3/4 in
Dimensions Dimension A
5 in
Dimensions Dimension B
13 1/2 in
Dimensions Dimension C
8 5/8 in
Dimensions Size
8 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
