Sure Flow FE150SS 28in Retainerless Stainless Steel Double Door Check Valve
Sure Flow FE150SS 28in Retainerless Stainless Steel Double Door Check Valve
SKU:DOU-24bf2c
Durable Sure Flow 28in Stainless Steel Double Door Check Valve, ISO 9001:2008 Compliant
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow FE150SS 28in Retainerless Stainless Steel Double Door Check Valve
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SS 28in Retainerless Stainless Steel Double Door Check Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

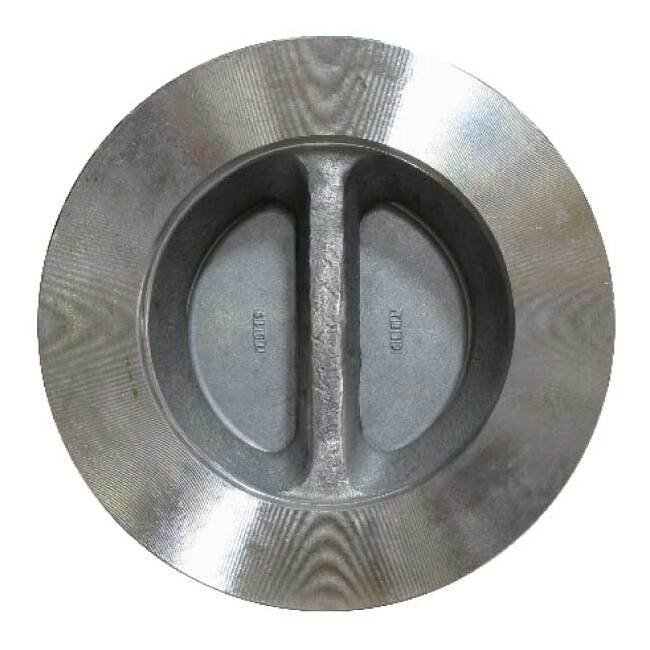

The Sure Flow FE150SS Series presents a high-quality 28-inch double door dual disc check valve designed for reliable performance. Crafted from stainless steel, this retainerless wafer valve boasts precise dimensions to ensure a secure fit. With a fluorocarbon seat/seal, SA351 CF8M disc, and 316 stainless steel shaft components, this valve guarantees durability and efficiency. Compliant with ISO 9001:2008 standards, it meets the strictest quality assurance requirements, making it an ideal choice for various industrial applications.
Product Specifications
Dimensions Dimension A
12 5/8 in
Dimensions Dimension B
32 3/4 in
Dimensions Dimension C
27 5/8 in
Dimensions Size
28 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve is TappedFor Eyebolt for Lifting

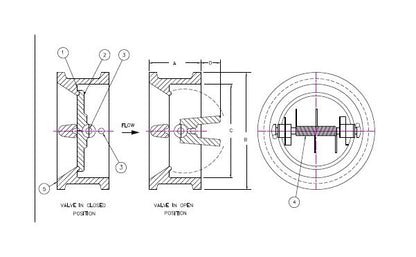

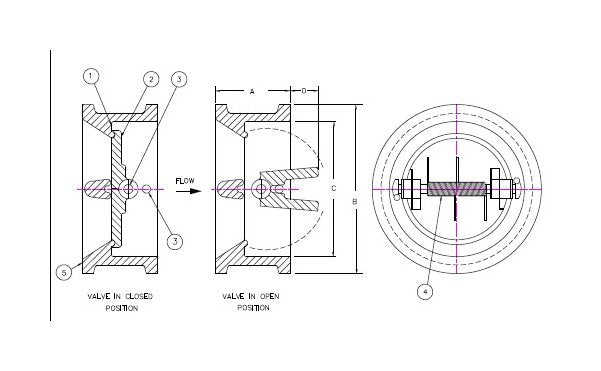

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
