Sure Flow FE150SS 4-Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150SS 4-Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-88046a
Reliable Sure Flow 4-Inch Stainless Steel Double Door Check Valve for optimal flow control.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow FE150SS 4-Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SS 4-Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150SS Series 4-Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve is a high-quality valve suitable for both consumer and institutional use. Made of durable stainless steel, this valve features a double door design with dual discs, ensuring reliable and efficient performance. It meets International Organization for Standardization (ISO) 9001:2008 (Intertek) standards and comes with premium components like a fluorocarbon seat/seal, SA351 CF8M disc, and 316 stainless steel shaft.
Product Specifications

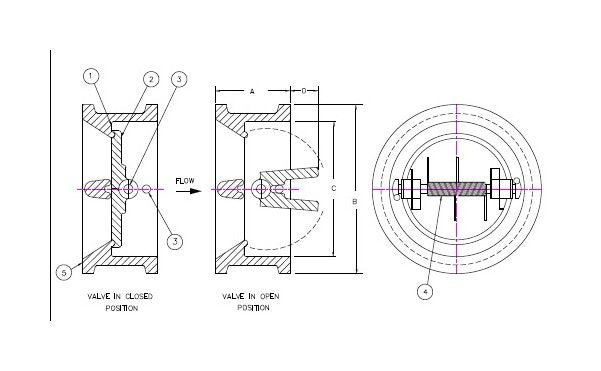

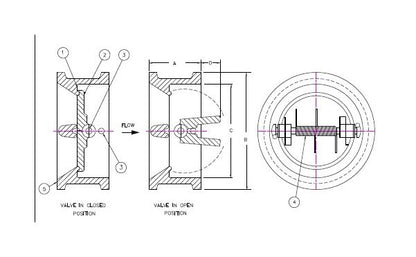

Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
6 7/8 in
Dimensions Dimension C
4 1/2 in
Dimensions Dimension D
7/8 in
Dimensions Size
4 in
Dimensions Weight
14 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
