Sure Flow FE150SS Series 2 Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150SS Series 2 Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-a6f6ce
Reliable 2" Stainless Steel Wafer Check Valve with Dual Discs, Certified to ISO 9001:2008
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow FE150SS Series 2 Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SS Series 2 Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150SS Series 2 Inch Retainerless Stainless Steel Wafer Double Door Dual Disc Check Valve is a top-of-the-line solution for both consumer and institutional buyers. Crafted from high-grade stainless steel, this valve ensures durability and reliability. Featuring a double door design with dual discs, it offers enhanced efficiency in preventing backflow. With industry-leading standards certifications like ISO 9001:2008 (Intertek), this valve meets the strictest quality requirements. The innovative design includes components like fluorocarbon seals, SA351 CF8M discs, and Inconel torsion springs, guaranteeing optimal performance in various applications.
Product Specifications

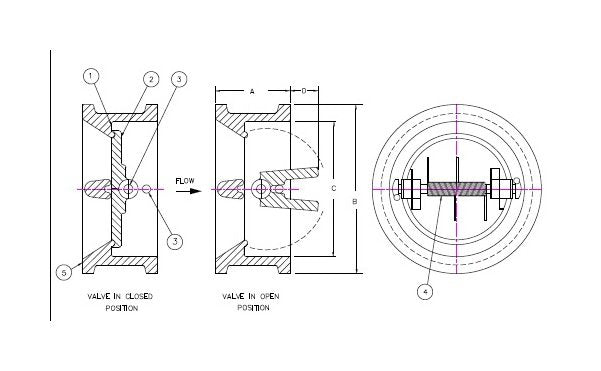

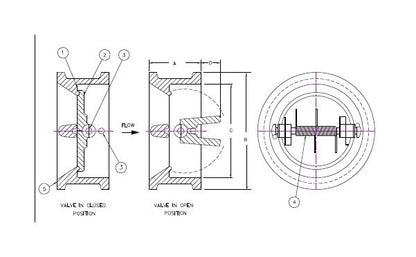

Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Dimension C
2 3/8 in
Dimensions Dimension D
1/8 in
Dimensions Size
2 in
Dimensions Weight
5 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
