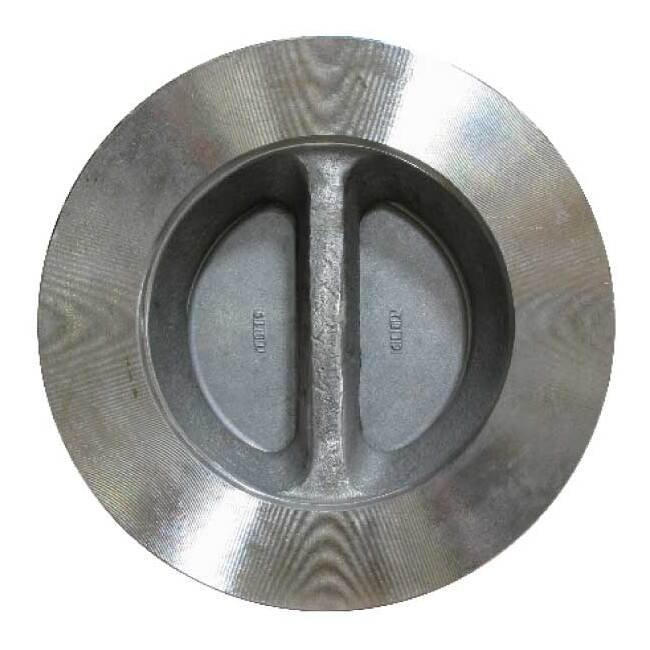

Sure Flow FE150SS Series 6 Inch Stainless Steel Wafer Double Door Dual Disc Check Valve
Sure Flow FE150SS Series 6 Inch Stainless Steel Wafer Double Door Dual Disc Check Valve
SKU:DOU-a064b0
Premium 6" Stainless Steel Wafer Check Valve for optimal flow control. ISO 9001:2008 certified.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow FE150SS Series 6 Inch Stainless Steel Wafer Double Door Dual Disc Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SS Series 6 Inch Stainless Steel Wafer Double Door Dual Disc Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150SS Series 6 Inch Stainless Steel Wafer Double Door Dual Disc Check Valve is a top-tier solution designed for critical applications. Constructed with high-grade stainless steel, this retainerless valve ensures reliable performance and durability. The double-door, dual-disc design enhances flow efficiency and minimizes pressure drop. With industry-leading certifications like ISO 9001:2008 (Intertek), this valve guarantees quality and compliance, making it an ideal choice for both institutional and consumer buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

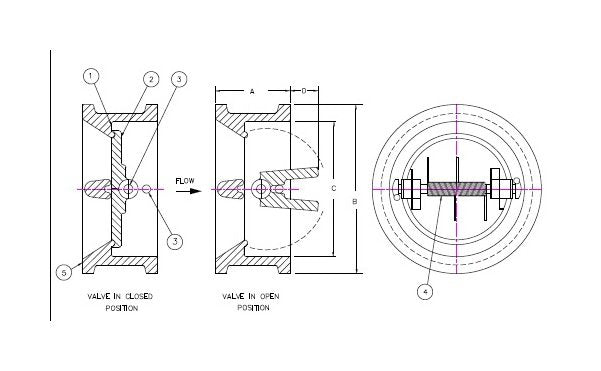

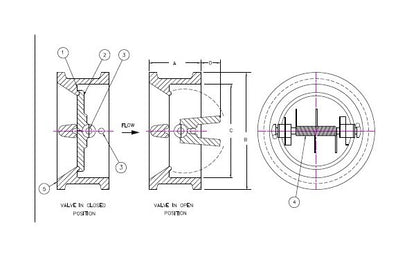

Dimensions Dimension A
3 7/8 in
Dimensions Dimension B
8 3/4 in
Dimensions Dimension C
6 5/8 in
Dimensions Dimension D
1 1/4 in
Dimensions Size
6 in
Dimensions Weight
29 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door | Dual Disc | Wafer
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
