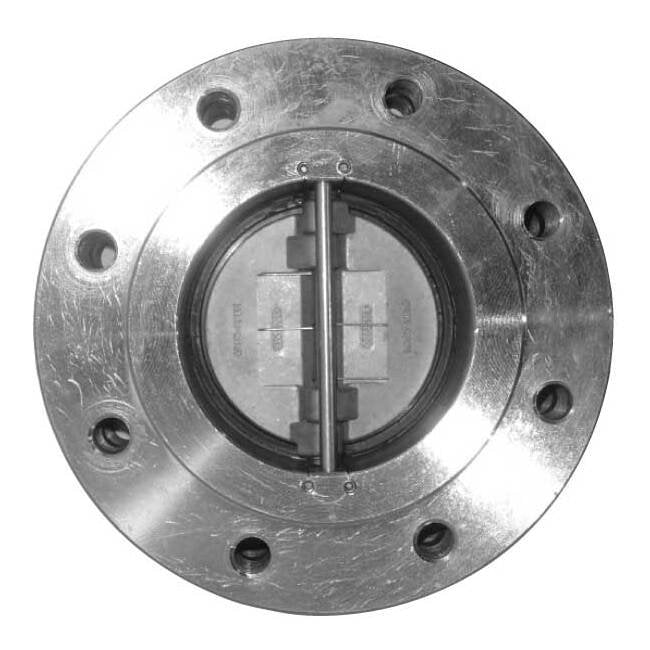

Sure Flow FE150SSL 10-inch Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE150SSL 10-inch Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-635b5e
Reliable Sure Flow 10-inch Carbon Steel Lug Double Door Check Valve for industrial applications. ISO 9001:2008 certified.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow FE150SSL 10-inch Retainerless Carbon Steel Lug Double Door Check Valve
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SSL 10-inch Retainerless Carbon Steel Lug Double Door Check Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150SSL 10-inch Retainerless Carbon Steel Lug Double Door Check Valve is a durable and reliable solution for industrial applications. This check valve is constructed with high-quality stainless steel, featuring a double door design for efficient flow control and minimal pressure drop. With industry-standard certifications like ISO 9001:2008 (Intertek), this valve ensures performance excellence and compliance. Each component, from the fluorocarbon seat/seal to the Inconel torsion spring, is meticulously crafted for longevity and precision. Trust in Sure Flow for top-tier valve solutions.
Product Specifications

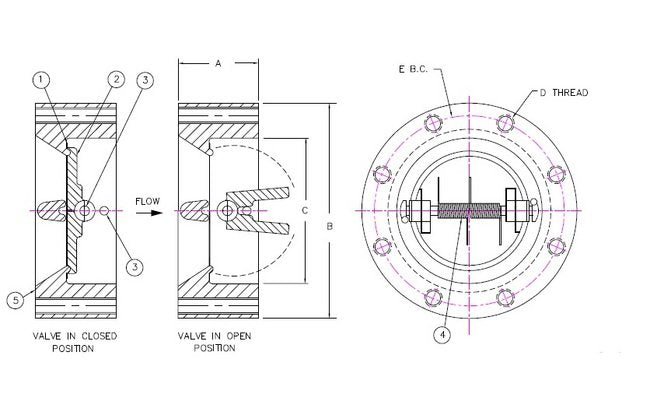

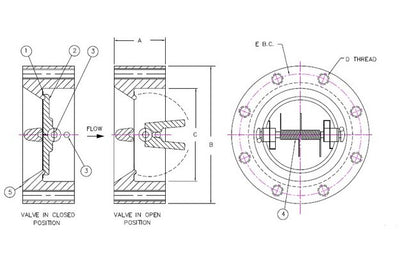

Dimensions Bolt Circle Bc E
14 1/4 in
Dimensions Dimension A
5 3/4 in
Dimensions Dimension B
16 in
Dimensions Dimension C
10 3/4 in
Dimensions Size
10 in
Dimensions Thread Size D
7/8-9 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
