Sure Flow FE150SSL 2" Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE150SSL 2" Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-2af42e
High-quality 2" Retainerless Carbon Steel Lug Double Door Check Valve by Sure Flow. Stainless steel construction, ISO 9001:2008 certified.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow FE150SSL 2" Retainerless Carbon Steel Lug Double Door Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SSL 2" Retainerless Carbon Steel Lug Double Door Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

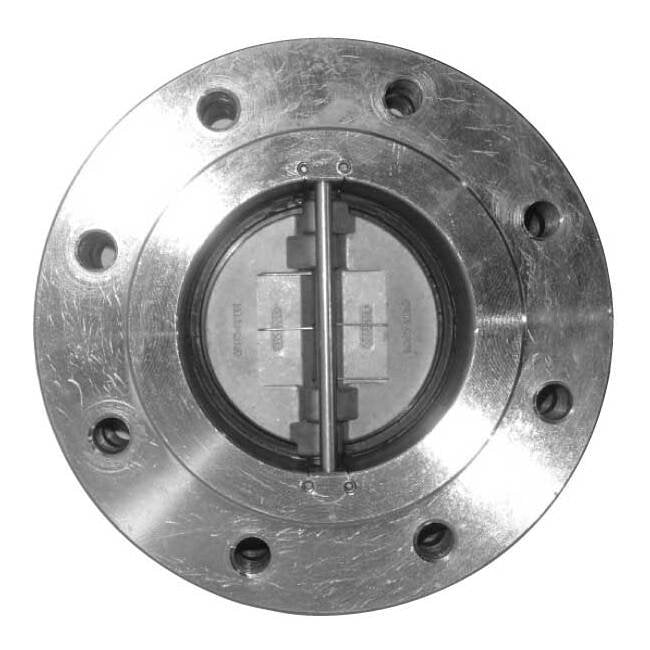

The Sure Flow FE150SSL 2" Retainerless Carbon Steel Lug Double Door Check Valve is a top-quality, durable valve designed for optimal performance. Crafted from stainless steel, this double door check valve ensures secure flow control. With its International Organization for Standardization (ISO) 9001:2008 certification, it guarantees quality and reliability. The valve features a seat/seal made of Fluorocarbon (FKM)/316 Stainless Steel, a disc of SA351 CF8M, a shaft of 316 Stainless Steel, and a torsion spring of Inconel®, all housed in a cast body of SA351 CF8M.
Product Specifications

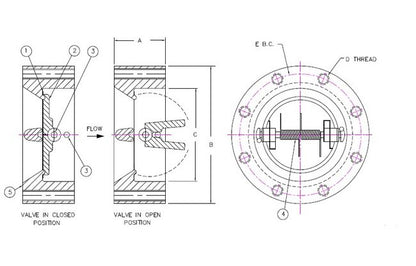

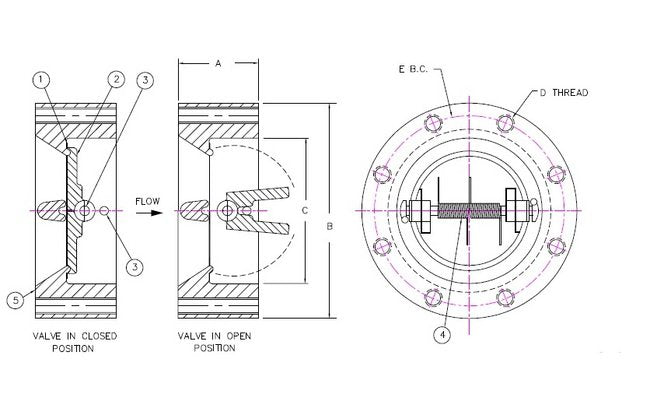

Dimensions Bolt Circle Bc E
4 3/4 in
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
6 in
Dimensions Dimension C
2 3/8 in
Dimensions Size
2 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
