Sure Flow FE150SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE150SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-27aa5e
Reliable Sure Flow 3 Inch Carbon Steel Double Door Check Valve for industrial applications. ISO 9001:2008 certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow FE150SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

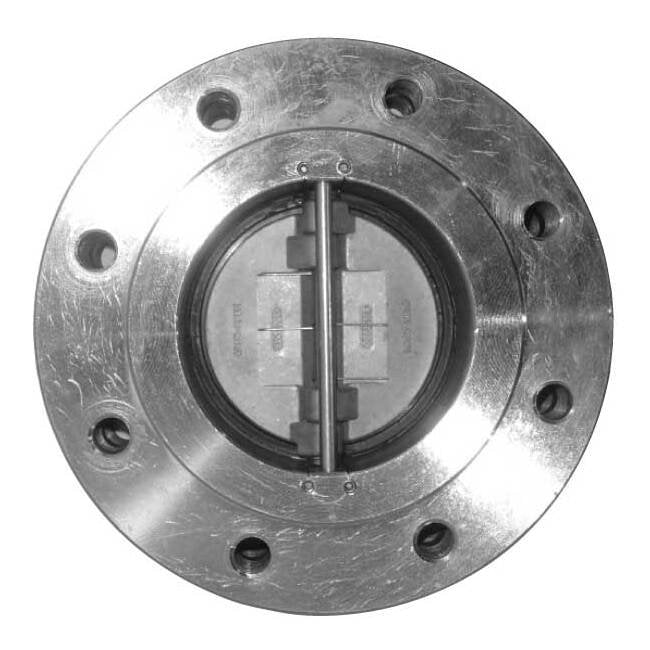

The Sure Flow FE150SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve is a durable and reliable solution for various industrial applications. Constructed with high-grade stainless steel, this double door check valve ensures efficient flow control and prevents backflow. It features a retainerless design for easier maintenance and inspection. With industry-standard certifications like ISO 9001:2008, this valve guarantees quality and performance.
Product Specifications

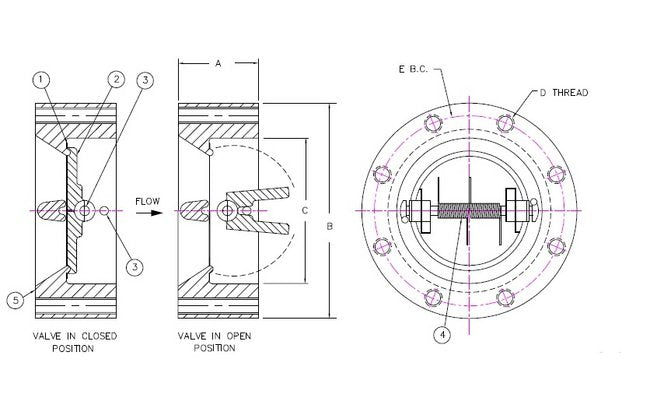

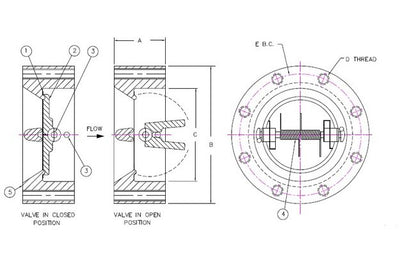

Dimensions Bolt Circle Bc E
6 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
7 1/2 in
Dimensions Dimension C
3 3/4 in
Dimensions Size
3 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
