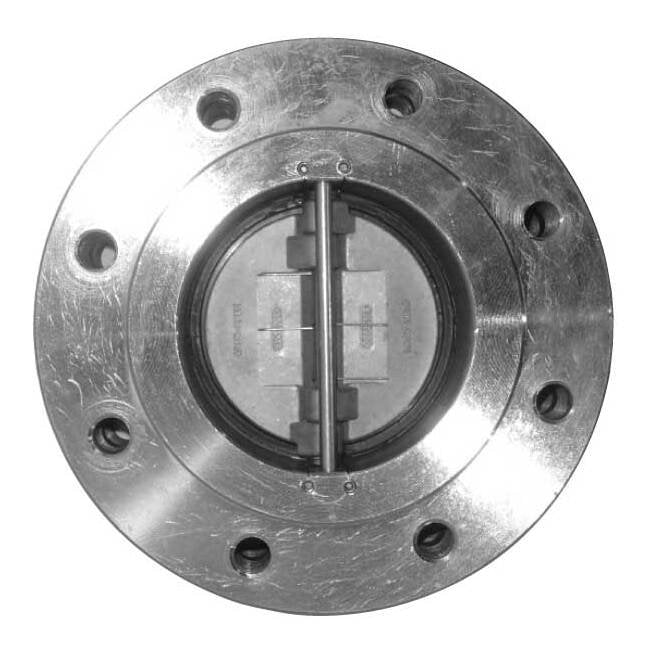

The Sure Flow FE150SSL 4 Inch Retainerless Carbon Steel Lug Double Door Check Valve is designed for optimal flow control in demanding industrial environments. Constructed with durable stainless steel materials, featuring a double door design, and precision-engineered components such as fluorocarbon seals and 316 stainless steel discs, this valve ensures reliable performance and long-lasting durability. Certified to meet ISO 9001:2008 standards, it guarantees superior quality and compliance for institutional and government procurement needs.
Product Specifications

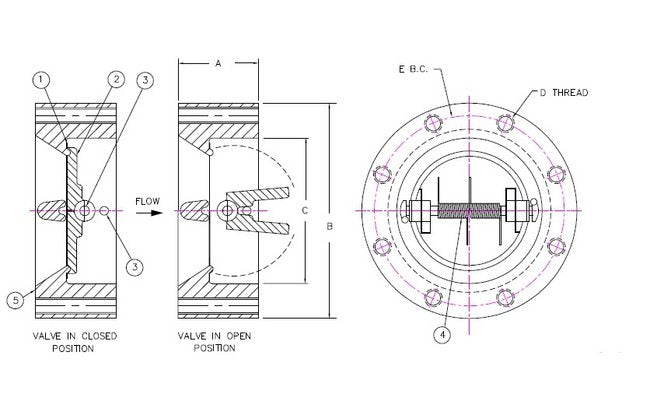

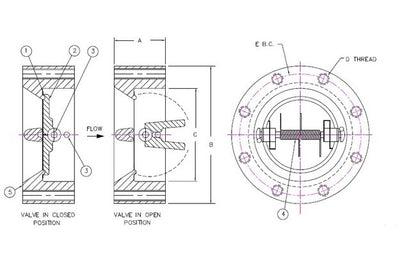

Dimensions Bolt Circle Bc E
7 1/2 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
9 in
Dimensions Dimension C
4 1/2 in
Dimensions Size
4 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
