Sure Flow FE150SSL 6in Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE150SSL 6in Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-e7c7e5
Durable 6in Carbon Steel Double Door Check Valve for industrial use, ISO 9001:2008 compliant
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow FE150SSL 6in Retainerless Carbon Steel Lug Double Door Check Valve
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SSL 6in Retainerless Carbon Steel Lug Double Door Check Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

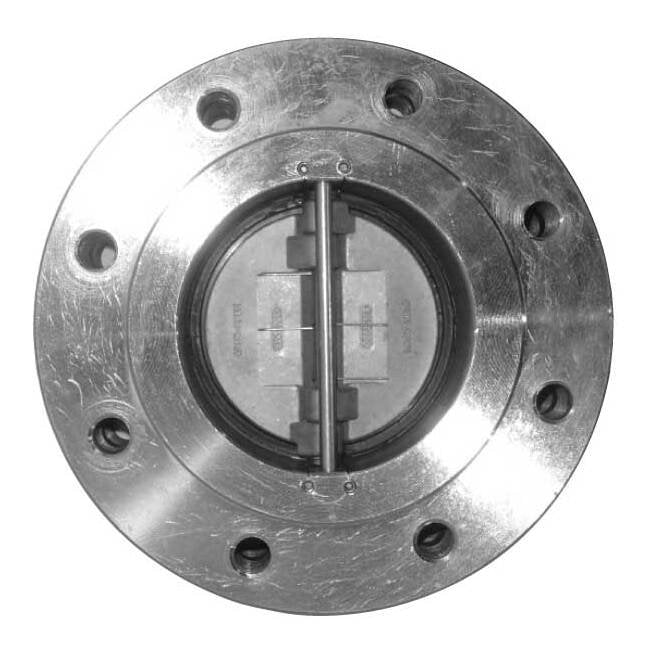

The Sure Flow FE150SSL 6-inch Retainerless Carbon Steel Lug Double Door Check Valve offers exceptional durability and reliability for a wide range of industrial applications. Featuring a retainerless design, stainless steel construction, and double door configuration, this check valve ensures secure flow control and minimal pressure drop. Compliant with International Organization for Standardization (ISO) 9001:2008 standards, it guarantees high performance and longevity in demanding environments.

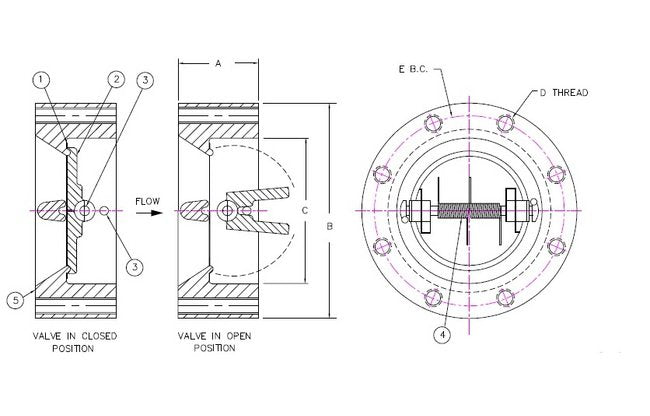

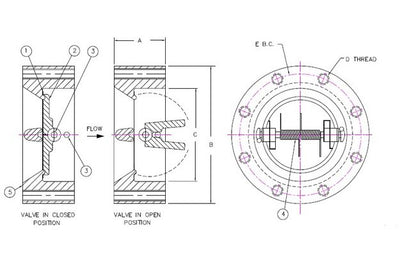

Product Specifications
Dimensions Bolt Circle Bc E
9 1/2 in
Dimensions Dimension A
3 7/8 in
Dimensions Dimension B
11 in
Dimensions Dimension C
6 5/8 in
Dimensions Size
6 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
