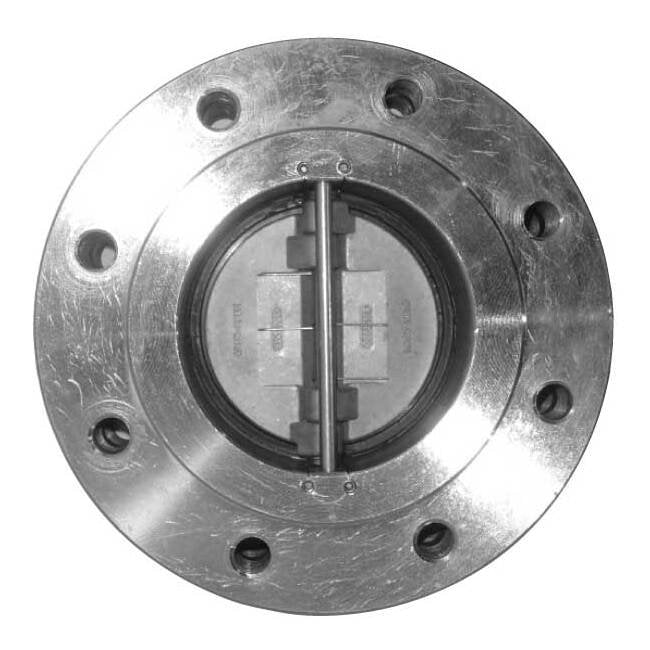

Sure Flow FE150SSL 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE150SSL 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-2d163a
High-performance 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve by Sure Flow, meeting ISO 9001:2008 standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow FE150SSL 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE150SSL 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE150SSL 8 Inch Retainerless Carbon Steel Lug Double Door Check Valve is a top-of-the-line solution for industrial fluid control applications. Crafted with high-quality materials including Stainless Steel, this valve ensures superior durability and performance. Its double door design enhances efficiency and reliability, while the Fluorocarbon seat/seal and SA351 CF8M disc provide exceptional sealing and corrosion resistance. Measuring 8 inches and meeting ISO 9001:2008 standards, this valve is a dependable choice for demanding environments.

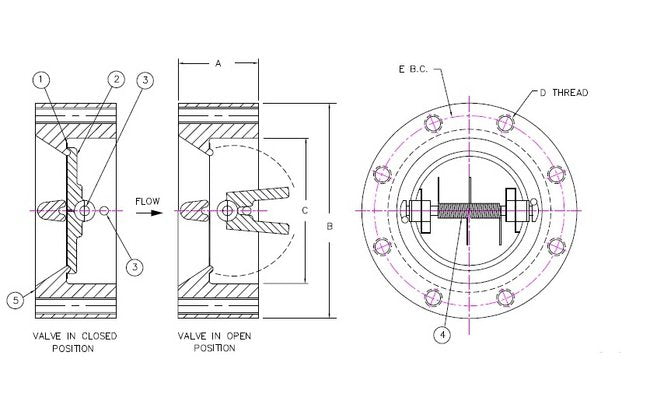

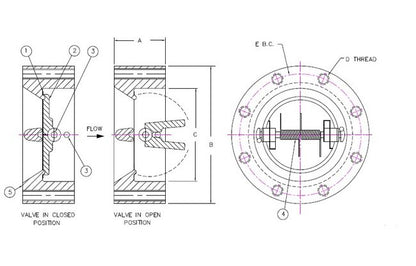

Product Specifications
Dimensions Bolt Circle Bc E
11 3/4 in
Dimensions Dimension A
5 in
Dimensions Dimension B
13 1/2 in
Dimensions Dimension C
8 5/8 in
Dimensions Size
8 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
