Sure Flow FE300 Series 24-Inch Carbon Steel Wafer Dual Disc Check Valve
Sure Flow FE300 Series 24-Inch Carbon Steel Wafer Dual Disc Check Valve
SKU:DOU-eeac8e
Premium Sure Flow 24'' Carbon Steel Wafer Double Door Check Valve - ISO 9001:2008 Compliant
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow FE300 Series 24-Inch Carbon Steel Wafer Dual Disc Check Valve
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE300 Series 24-Inch Carbon Steel Wafer Dual Disc Check Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE300 Series 24-inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is a robust and reliable solution for fluid control applications. Constructed from high-quality materials, this valve features a double door design with dual discs for enhanced performance and efficiency. With compliance to international standards like ISO 9001:2008, each component is meticulously engineered to ensure precision and durability. The fluorocarbon seat/seal, 316 stainless steel disc, and Inconel torsion springs guarantee long-term reliability under demanding conditions.
Product Specifications
Dimensions Dimension A
12 1/2 in
Dimensions Dimension B
30 1/2 in
Dimensions Dimension C
23 3/4 in
Dimensions Size
24 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

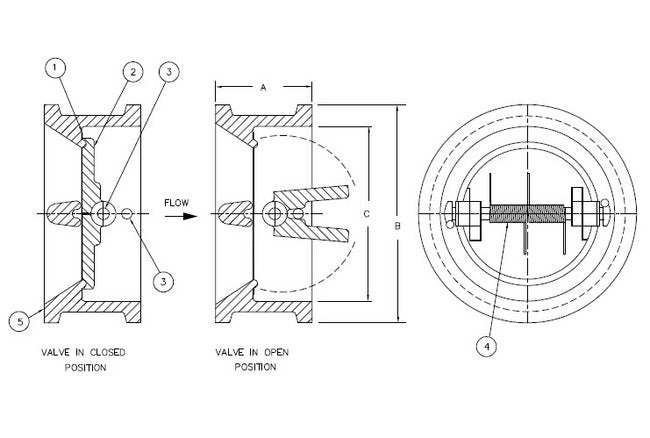

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
