Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

DOU-ce1b58

Reliable Sure Flow 4

$269.99
$269.99
Sale

Initiate Order

Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$269.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

Sure Flow FE300 Series 4 Inch Carbon Steel Wafer Double Door Dual Disc Check Valve

$269.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE300 Series 4 Inch Retainerless Carbon Steel Wafer Double Door Dual Disc Check Valve is designed for optimal performance and durability. With a robust construction using high-quality materials like Carbon Steel, this valve ensures reliable operation in demanding applications. The double door dual disc design enhances efficiency and prevents backflow, while meeting International Organization for Standardization (ISO) 9001:2008 quality standards. Each part is meticulously crafted, from the fluorocarbon seat/seal to the SA351 CF8M discs and Inconel torsion springs, guaranteeing long-term functionality.

Product Specifications

Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
7 1/8 in
Dimensions Dimension C
4 1/2 in
Dimensions Size
4 in
Dimensions Weight
15 lb
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)

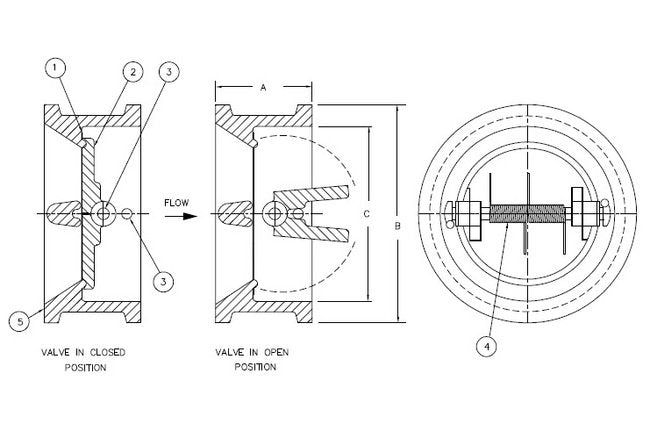

Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Wafer Double Door Dual Disc
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
