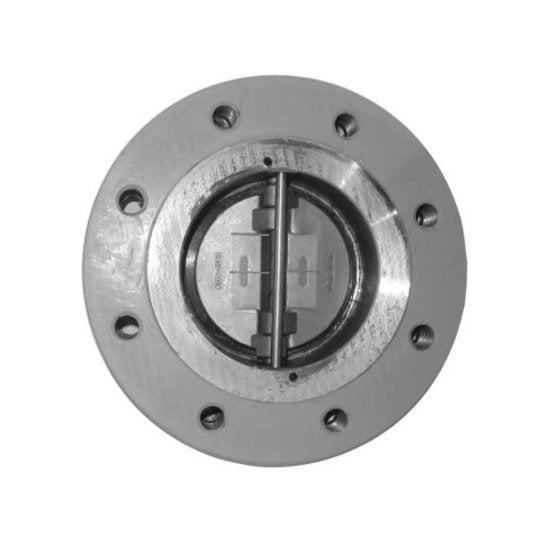

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

DOU-d94fa7

Explore the reliable Sure Flow FE300L 10 Inch Double Door Carbon Steel Lug Check Valve for industrial applications. ASME Standard B16.5 compliant.

$399.99
$399.99
Sale

Initiate Order

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$399.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$399.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE300L 10 Inch Retainerless Double Door Carbon Steel Lug Check Valve is designed to deliver exceptional performance and reliability. Crafted with high-grade carbon steel, this check valve is ideal for demanding industrial applications. Features include a double door design for efficient flow control, international standard certification (ISO 9001:2008), and premium components like a fluorocarbon seat/seal, SA351 CF8M disc, and Inconel® torsion spring. Compliant with ASME Standard B16.5, this valve ensures precision and durability for critical operations.

Product Specifications

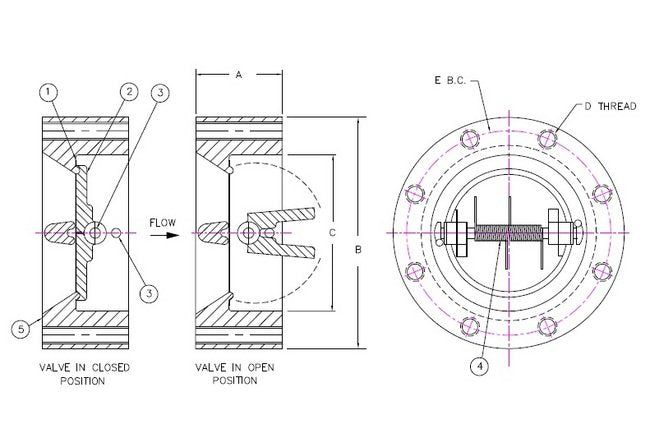

Dimensions Bolt Circle Bc E
15 1/4 in
Dimensions Dimension A
5 3/4 in
Dimensions Dimension B
17 1/2 in
Dimensions Dimension C
10 3/4 in
Dimensions Size
10 in
Dimensions Thread Size D
1-8 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
