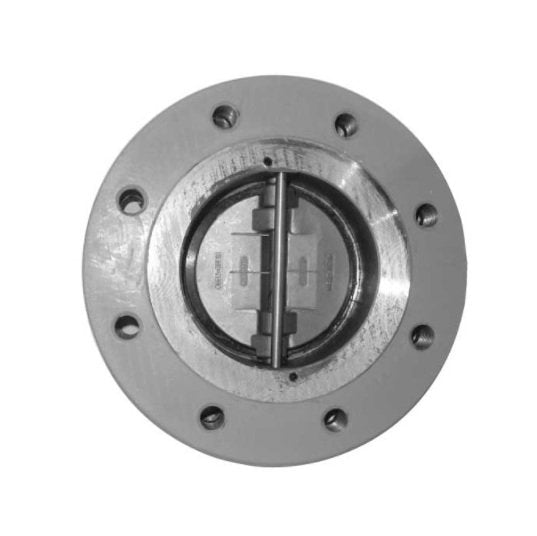

• Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve - Image 1
  • Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

DOU-990976

Sure Flow FE300L 2" Carbon Steel Lug Check Valve - Reliable performance & compliance with ISO 9001:2008.

$279.99
$279.99
Sale

Initiate Order

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

$279.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve

$279.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE300L 2" Retainerless Double Door Carbon Steel Lug Check Valve is engineered for reliable performance in demanding applications. Constructed with high-quality carbon steel, this valve features a double door design ensuring tight shut-off and preventing backflow. It meets ISO 9001:2008 standards, with key components made of materials like 316 stainless steel and Inconel®, providing durability and corrosion resistance. Ideal for industrial settings requiring precision and efficiency.

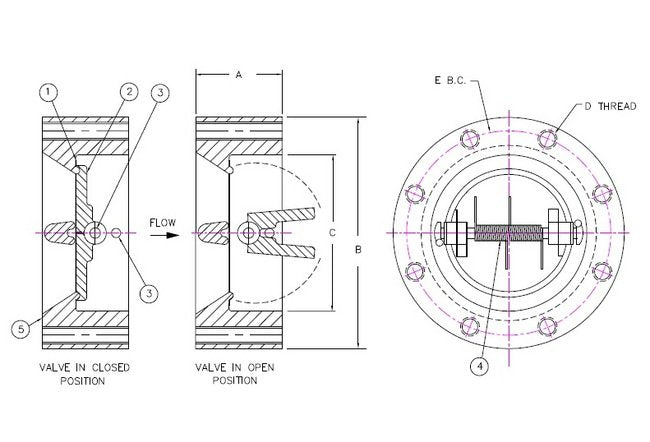

Product Specifications

Dimensions Bolt Circle Bc E
5 in
Dimensions Dimension A
2 3/8 in
Dimensions Dimension B
6 1/2 in
Dimensions Dimension C
2 3/8 in
Dimensions Size
2 in
Dimensions Thread Size D
5/8-11 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
