Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

DOU-35a0d7

Reliable 3" Retainerless Double Door Carbon Steel Lug Check Valve - ISO 9001:2008 Certified

$2,899.99
$2,899.99
Sale

Initiate Order

Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$2,899.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve

$2,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

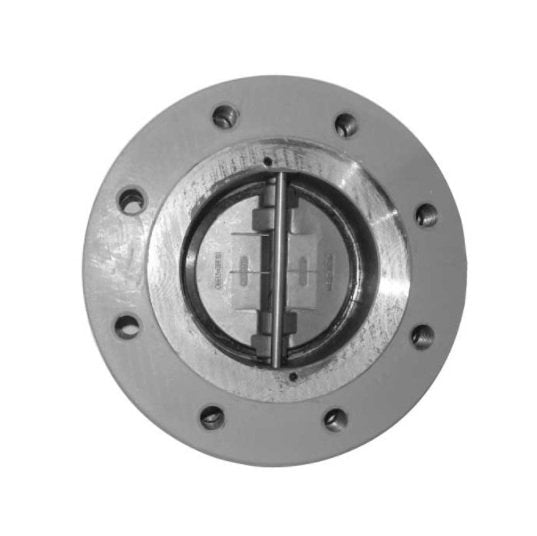

The Sure Flow FE300L 3 Inch Retainerless Double Door Carbon Steel Lug Check Valve is a reliable and durable solution for fluid control. Constructed from high-quality carbon steel, this valve features a double door design for efficient flow regulation. Meeting international industry standards like ISO 9001:2008 (Intertek), this valve ensures top-notch performance and longevity. With precision-engineered parts including a fluorocarbon seal, 316 stainless steel components, and Inconel® torsion springs, this valve guarantees optimal functionality in diverse industrial settings.

Product Specifications

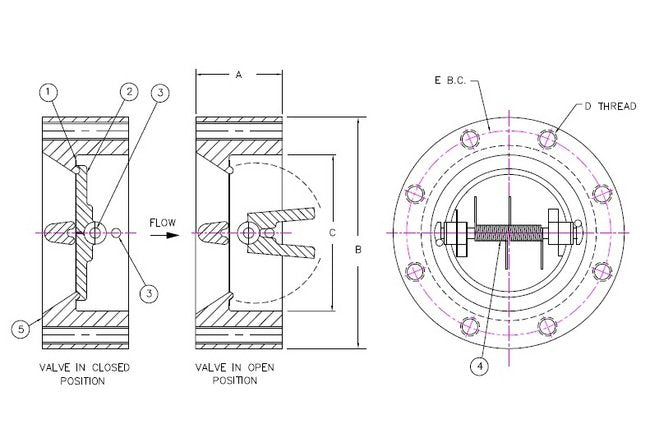

Dimensions Bolt Circle Bc E
6 5/8 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
8 1/4 in
Dimensions Dimension C
3 3/4 in
Dimensions Size
3 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
