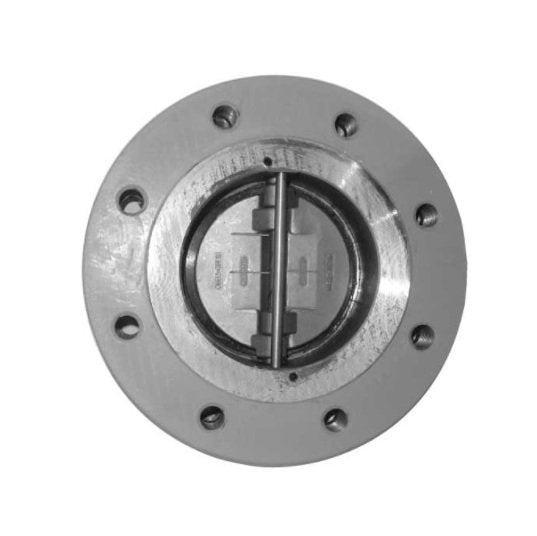

• Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve - Image 1
  • Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

DOU-b1f489

Reliable Sure Flow 4-Inch Double Door Check Valve, ISO 9001:2008 Certified, Ideal for Institutional Procurement

$369.99
$369.99
Sale

Initiate Order

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

$369.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve

$369.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE300L 4-Inch Retainerless Double Door Carbon Steel Lug Check Valve is a high-quality valve designed for optimal flow control and durability. Constructed with carbon steel and featuring a double door design, this valve ensures reliable performance in industrial applications. The valve meets International Organization for Standardization (ISO) 9001:2008 (Intertek) certification, guaranteeing top-notch quality and adherence to industry standards. With its fluorocarbon/316 stainless steel seat/seal, SA351 CF8M disc, and SA216 WCB cast body, this valve offers exceptional reliability and longevity, making it a preferred choice for institutional and government procurement needs.

Product Specifications

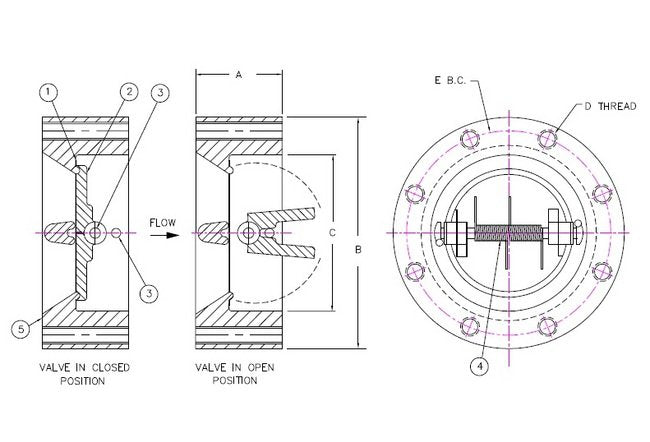

Dimensions Bolt Circle Bc E
7 7/8 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
10 in
Dimensions Dimension C
4 1/2 in
Dimensions Size
4 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
