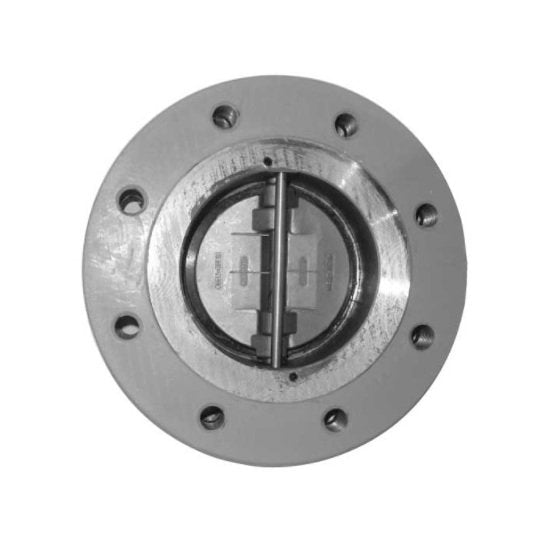

• Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve - Image 1
  • Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

DOU-89d9c2

High-performance 6in carbon steel lug check valve meeting ISO 9001:2008 standards.

$699.99
$699.99
Sale

Initiate Order

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

$699.99

Quantity: 1

Claim Your Seller Account

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

Sure Flow FE300L 6in Retainerless Double Door Carbon Steel Lug Check Valve

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FE300L 6 Inch Retainerless Double Door Carbon Steel Lug Check Valve is a premium industrial-grade valve designed for optimal performance. Constructed with high-quality carbon steel, this valve ensures long-lasting durability and reliable operation. The double door design enhances flow efficiency while the precise dimensions meet industry standards, including International Organization for Standardization (ISO) 9001:2008. Each part, from the fluorocarbon seat/seal to the SA351 CF8M disc, is meticulously crafted for peak functionality. Trust in Sure Flow for excellence in valve technology.

Product Specifications

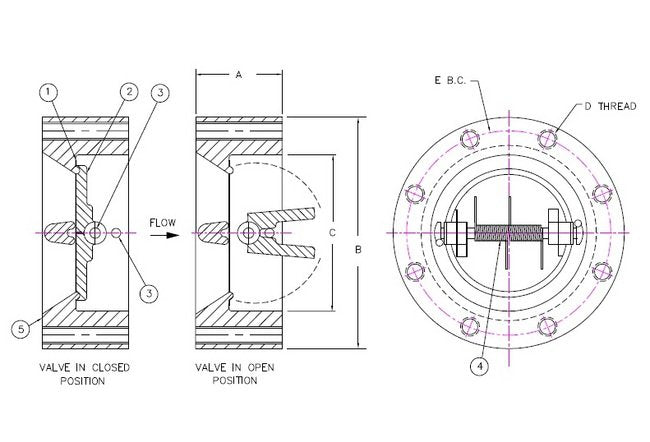

Dimensions Bolt Circle Bc E
10 5/8 in
Dimensions Dimension A
3 7/8 in
Dimensions Dimension B
12 1/2 in
Dimensions Dimension C
6 5/8 in
Dimensions Size
6 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
