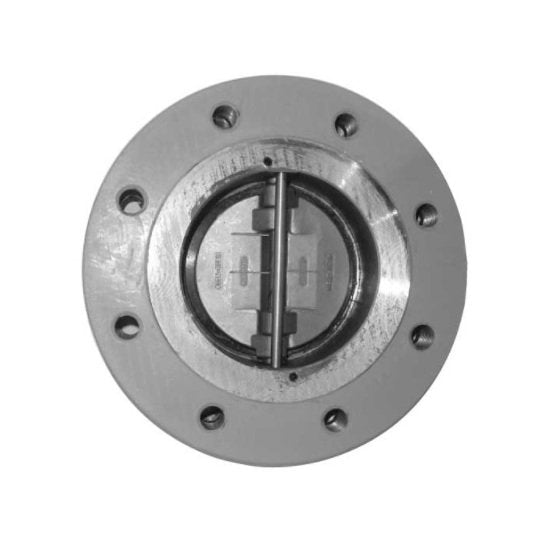

Sure Flow FE300L 8 Inch Retainerless Double Door Carbon Steel Lug Check Valve
Sure Flow FE300L 8 Inch Retainerless Double Door Carbon Steel Lug Check Valve
SKU:DOU-d8ae93
Reliable Sure Flow 8" Retainerless Double Door Carbon Steel Lug Check Valve for industrial use. Compliant with ISO 9001:2008 standards.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow FE300L 8 Inch Retainerless Double Door Carbon Steel Lug Check Valve
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE300L 8 Inch Retainerless Double Door Carbon Steel Lug Check Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE300L 8 Inch Retainerless Double Door Carbon Steel Lug Check Valve is a robust and reliable solution designed for industrial applications. Crafted from high-quality carbon steel, this valve features a Double Door design for enhanced performance. With dimensions meeting industry standards, including a 13-inch Bolt Circle, it ensures secure installation. The valve components, such as the Fluorocarbon seat/seal and SA351 CF8M disc, guarantee durability and efficiency. Compliant with ISO 9001:2008 standards, this valve is a top choice for institutions seeking quality and reliability.

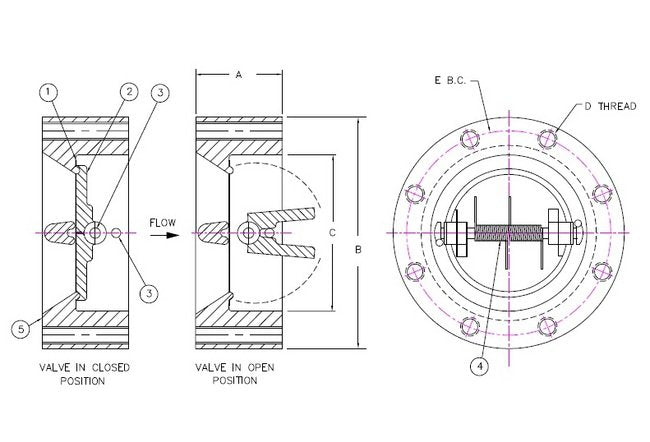

Product Specifications
Dimensions Bolt Circle Bc E
13 in
Dimensions Dimension A
5 in
Dimensions Dimension B
15 in
Dimensions Dimension C
8 5/8 in
Dimensions Size
8 in
Dimensions Thread Size D
7/8-9 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges Correspond to the Requirements of ASME Standard B16.5 for Approval or Quotation Purpose Only.
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA216 WCBQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Carbon Steel
Specifications Scale
Not to Scale (NTS)
