Sure Flow FE300SSL 10 Inch Retainerless Carbon Steel Lug Double Door Check Valve

Name: Sure Flow FE300SSL 10 Inch Retainerless Carbon Steel Lug Double Door Check Valve
Brand: Sure Flow Equipment, Inc.
SKU: DOU-e5514d
Price: 399.99 USD
Availability: OutOfStock

SKU:DOU-e5514d

Reliable 10in Retainerless Double Door Check Valve by Sure Flow, meets ISO 9001:2008 standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

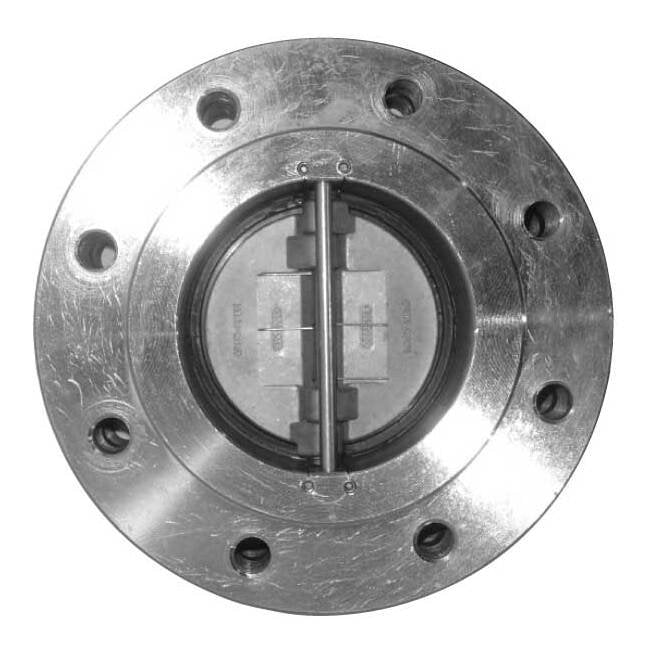

The Sure Flow FE300SSL is a robust 10-inch Double Door Check Valve crafted from stainless steel. Featuring a retainerless design, it ensures efficient flow control with a double door mechanism. Compliant with ISO 9001:2008 standards, this valve offers superior durability and performance. The fluorocarbon seat/seal, CF8M disc, and 316 stainless steel components guarantee reliability in demanding applications.

Product Specifications

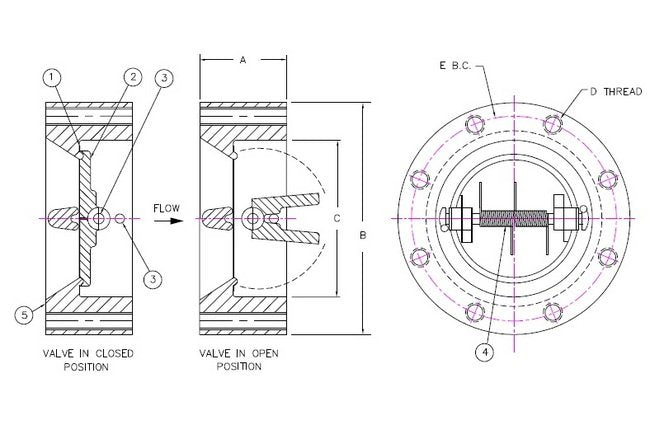

Dimensions Bolt Circle Bc E

15 1/4 in

Dimensions Dimension A

5 3/4 in

Dimensions Dimension B

17 1/2 in

Dimensions Dimension C

10 3/4 in

Dimensions Size

10 in

Dimensions Thread Size D

1-8 in

Dimensions Thread Type

Unified National Coarse (UNC) Thread

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Parts List Parts List

Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - InconelÂ®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1

Specifications Check Valve Type

Double Door

Specifications Material

Stainless Steel

Specifications Scale

Not to Scale (NTS)

Sure Flow FE300SSL 10 Inch Retainerless Carbon Steel Lug Double Door Check Valve
