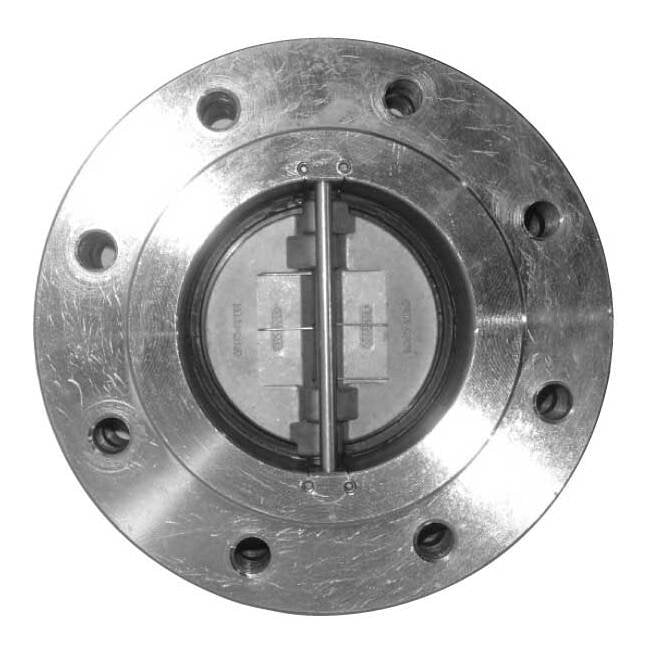

Sure Flow FE300SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
Sure Flow FE300SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
SKU:DOU-f9d531
High-quality 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve by Sure Flow, ISO 9001:2008 certified for reliability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow FE300SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow FE300SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FE300SSL 3 Inch Retainerless Carbon Steel Lug Double Door Check Valve is a top-of-the-line product built for durability and reliability. Made from stainless steel, this valve is designed to withstand high pressure and provide long-lasting performance. It features a double door check valve type, ensuring optimal flow control and preventing backflow. With industry-leading certifications like ISO 9001:2008 (Intertek), this valve meets the highest quality standards. Each part, from the seat/seal to the cast body, is meticulously crafted for precision and efficiency.
Product Specifications

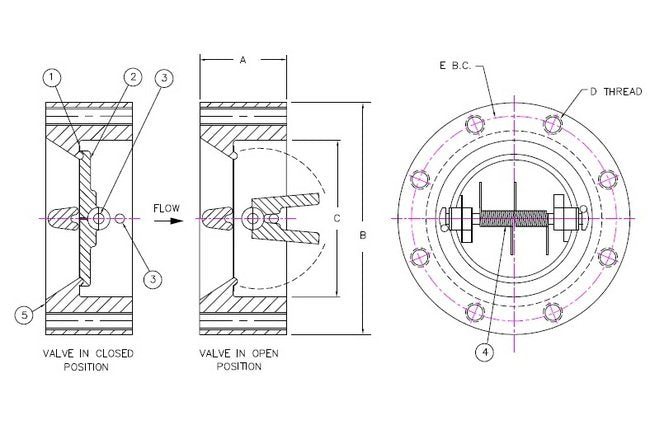

Dimensions Bolt Circle Bc E
6 5/8 in
Dimensions Dimension A
2 7/8 in
Dimensions Dimension B
8 1/4 in
Dimensions Dimension C
3 3/4 in
Dimensions Size
3 in
Dimensions Thread Size D
3/4-10 in
Dimensions Thread Type
Unified National Coarse (UNC) Thread
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Parts List Parts List
Item - 1Description - Seat/SealSpecifications - Fluorocarbon (FKM)/316 Stainless SteelQuantity - 1Item - 2Description - DiscSpecifications - SA351 CF8MQuantity - 2Item - 3Description - ShaftSpecifications - 316 Stainless SteelQuantity - 2Item - 4Description - Torsion SpringSpecifications - Inconel®Quantity - 2Item - 5Description - Cast BodySpecifications - SA351 CF8MQuantity - 1
Specifications Check Valve Type
Double Door
Specifications Material
Stainless Steel
Specifications Scale
Not to Scale (NTS)
